1st Weapon models:

• Your hunting weapon (Blaser R93 or R8) with 1 or 2-piece stock system can be converted very easily!
• For the 2-piece shaft variants, the conversion can be carried out by the customer himself in self-assembly.
• For the 1-piece shaft variants, we are happy to do this for you free of charge, as these have to be adjusted by us in order to achieve the desired precision.
• Basically All asdm shaft systems are based on the same geometric concept. Only the connection geometry to the system box is adapted to the respective weapon model. Therefore, the Product details valid for R93 and also R8!
• It is now also possible to
• R8 with straight standard shaft
• in
• 2 buttstock variants
• to receive (see Gallery R8).
• Only asdm can do that!
• Variant #R8.VA1 & #R8.VA4:
• fits your existing trigger unit with rounded standard trigger guard.
• Variant #R8.VA2 & #R8.VA5:
• enables the success execution of the
• trigger unit
• with a smooth transition to the buttstock, as with the R8 Success and R8 Ultimate as well as the R8 Professional/Success. However, it should be noted that these
• trigger unit not
• is available from asdm and therefore cannot be included in the scope of delivery!
• Your Blaser dealer will be happy to help you!
• We do not deliver off the shelf, each shaft set is a
• according to customer-specific requirements
• manufactured
• custom-made.
• Thus, every customer receives
• a
• Unique!
• The production and delivery time is therefore several weeks!

shaft screw arrangement

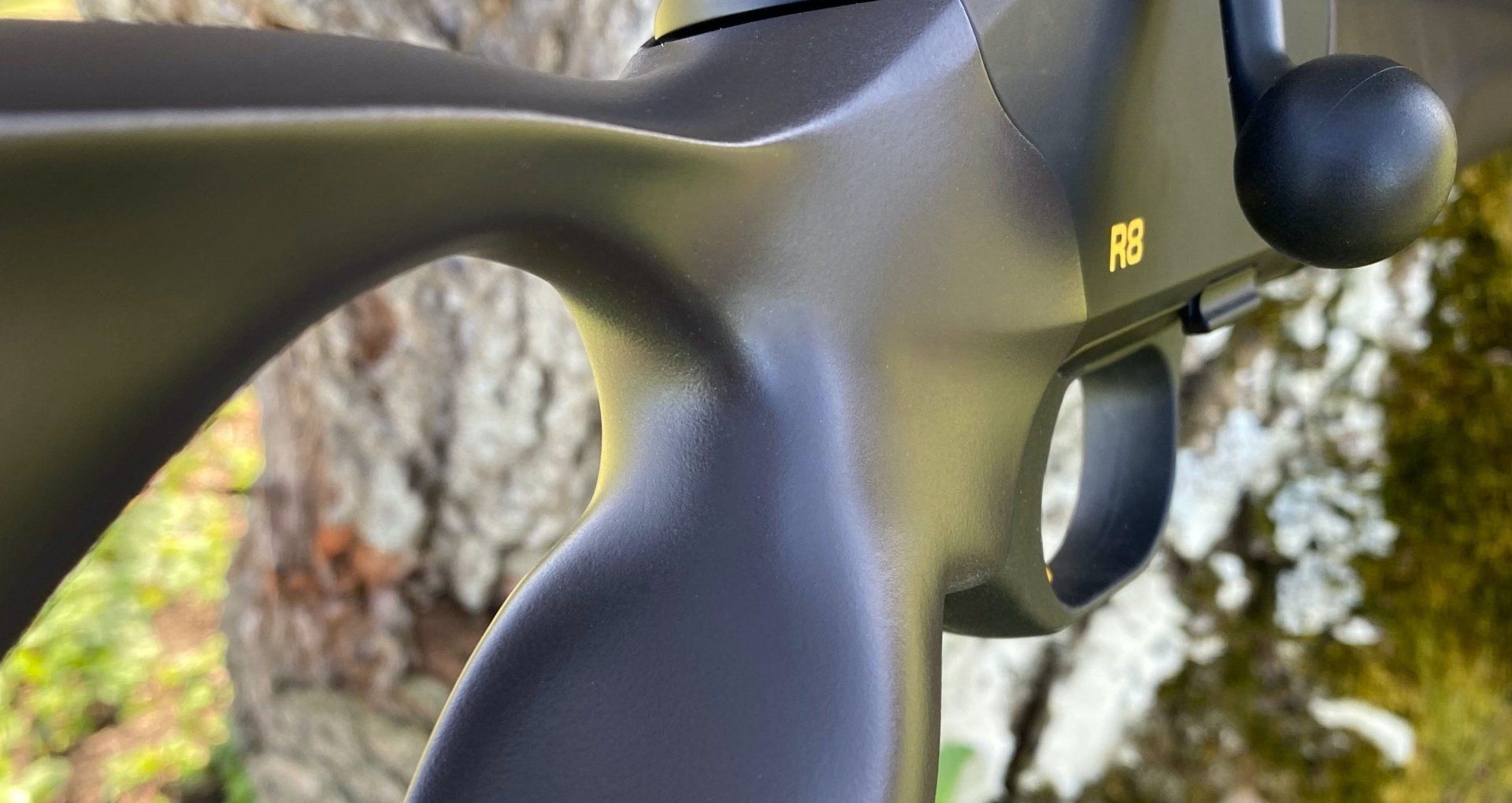

1.3 Grip recess

• An unsightly visible and noticeable mounting hole in the grip recess of the pistol grip, which is quite common with some manufacturers, is not present! (see picture of grip recess)


Griffmulde

1.4 No separating edges:

• In contrast to other plastic shafts, the asdm shaft no separating edges on the outer contour to see or even feel. This is because our shaft is made from one piece. With traditional plastic production, however, this is not possible due to manufacturing processes.

1.5 Gap size:

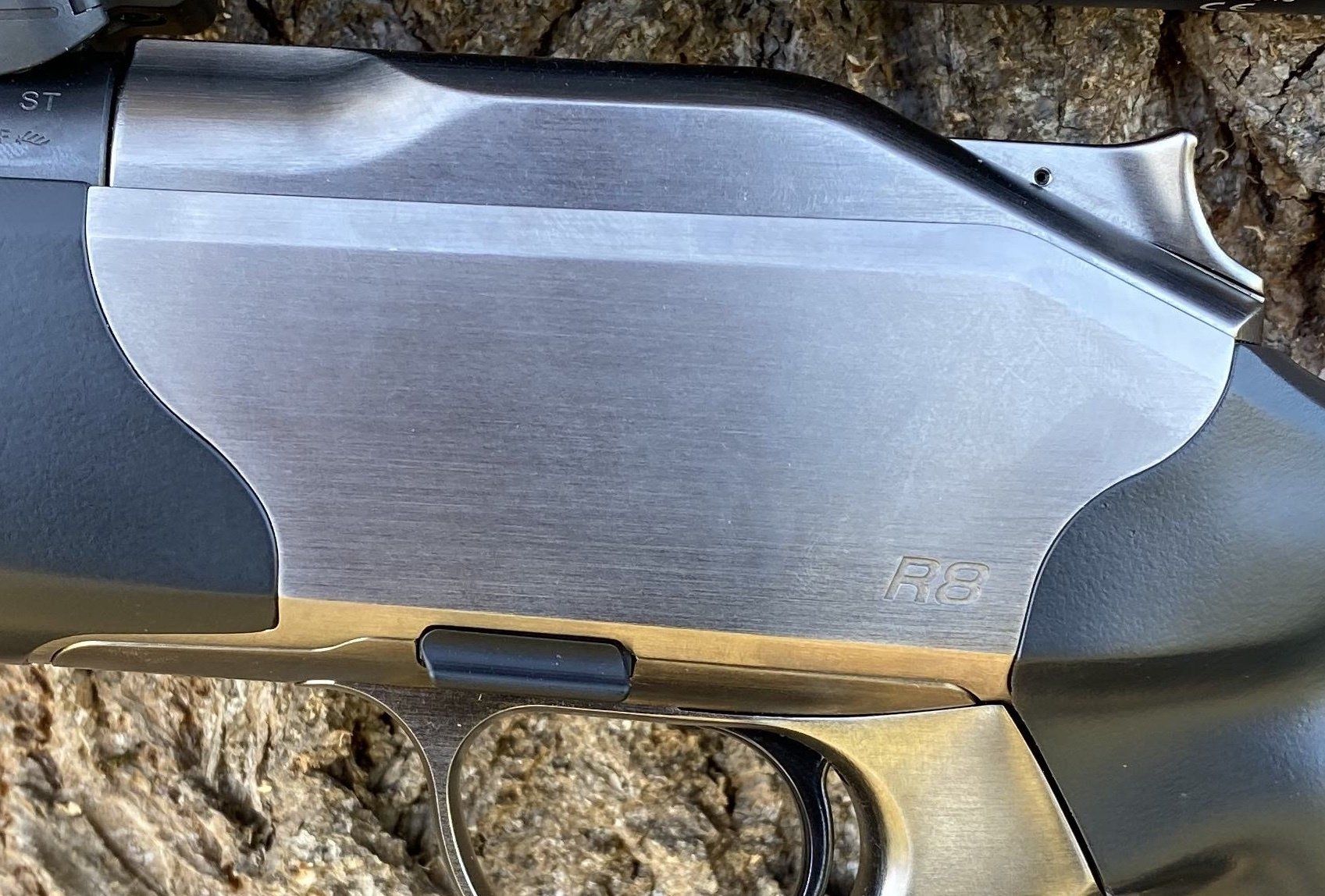

• Through our digital additive manufacturing we produce highly precise system box connections. contour gap tolerance at the seams to the system box is just max. 0.03mm.

Spaltmaß

1.6 Weight:

• Despite the integrated stock adjustment, the complete (including all stock screws) asdm stock is light (approx. 900g).

1.7 Stability:

• Through an inlay process specially developed and patented by asdm, the shaft system achieves an extraordinary stability which allows the use all commercially available industrial loadings allowed, even large calibers!
• The material
• from which our products are made is a high-strength plastic specially developed for asdm with
• 30% carbon fiber content
• This makes our shafting very
• stable, with low weight!
•


asdm integrates 3 mounting sockets as standard.

• 1x forearm
• 2x buttstock bottom and top (stock back)

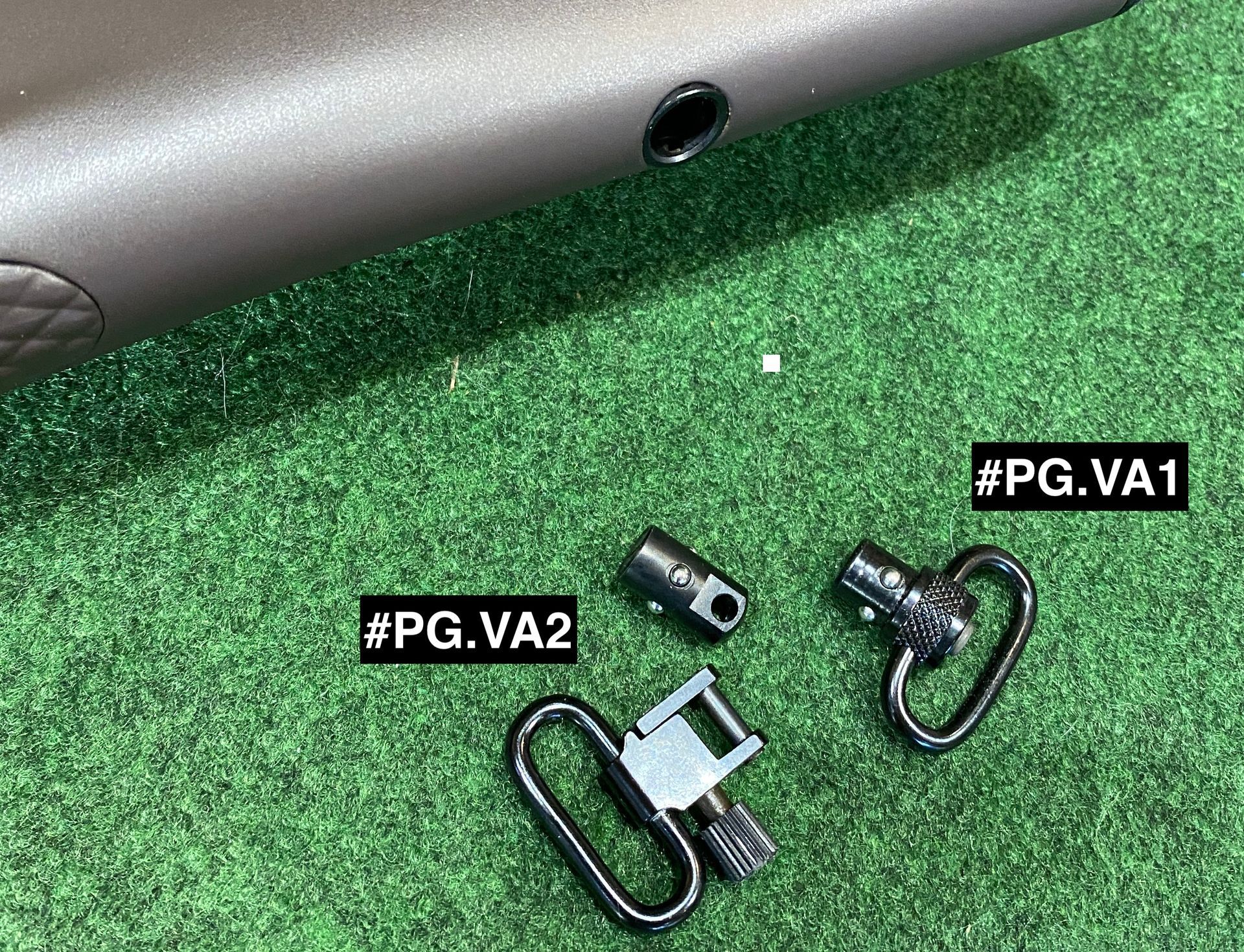

• We recommend the #PG.VA1 variant, as it is easier to handle and allows flexible alignment of the sling swivels in the stock without the use of tools. This offers particular advantages when using the asdm rifle sling: Save & Rapid

2nd haptics

2.1 Haptic fore-end:

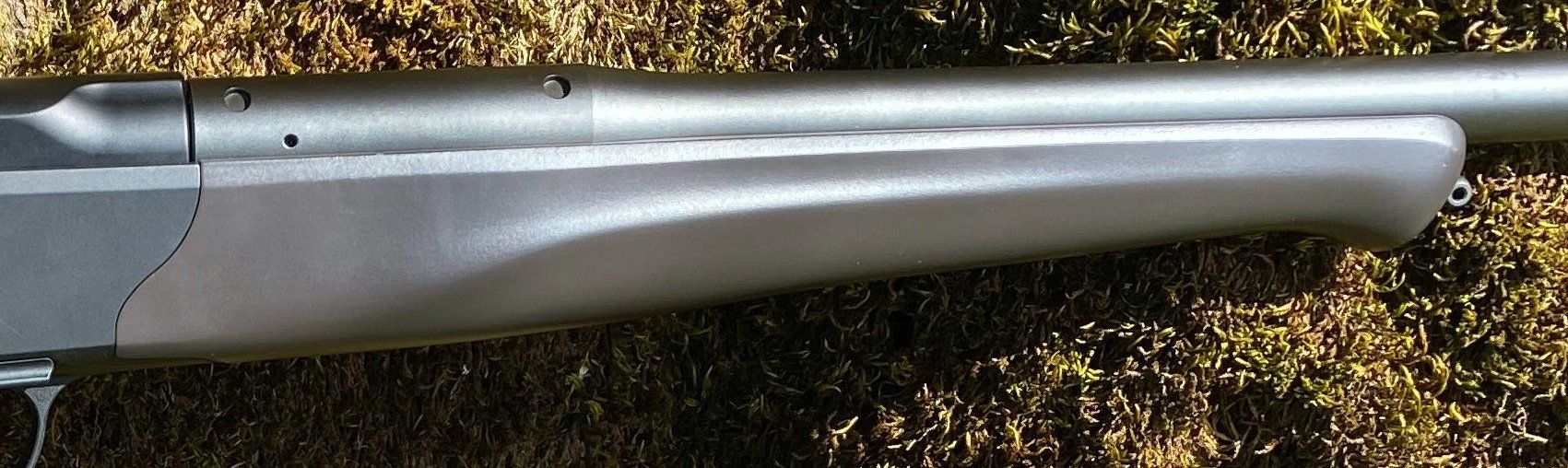

• We attach great importance to the ergonomics our stock, therefore the forearm is provided with a grip strip and thus for Equally suitable for left- and right-handed users.

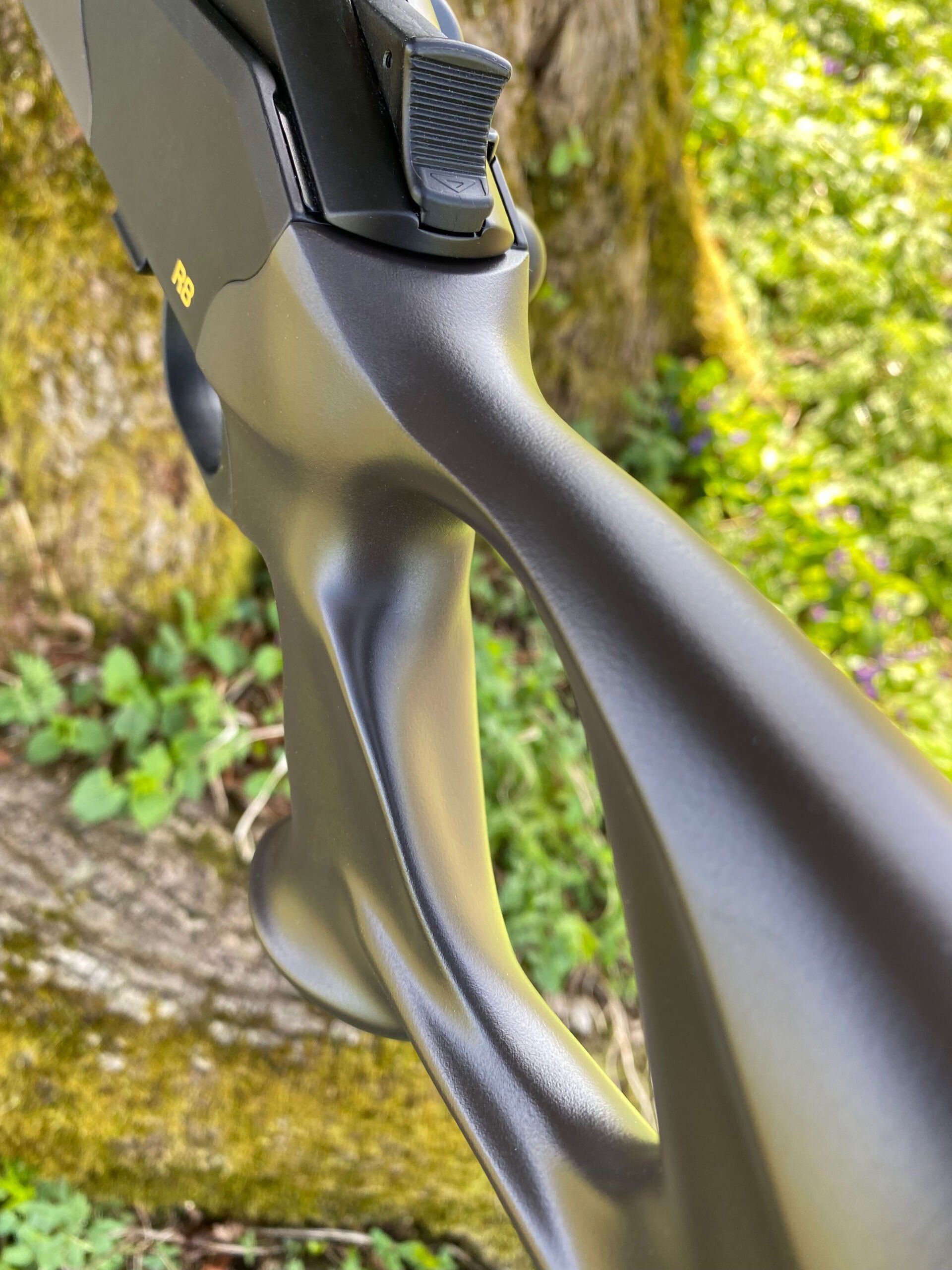

2.2 Haptic buttstock:

• The buttstock is generally equipped with a pistol grip designed because this is the only way to ensure an ergonomic, relaxed and more enduring position when shooting. This is based on our many years of experience and is the core of our product philosophy.

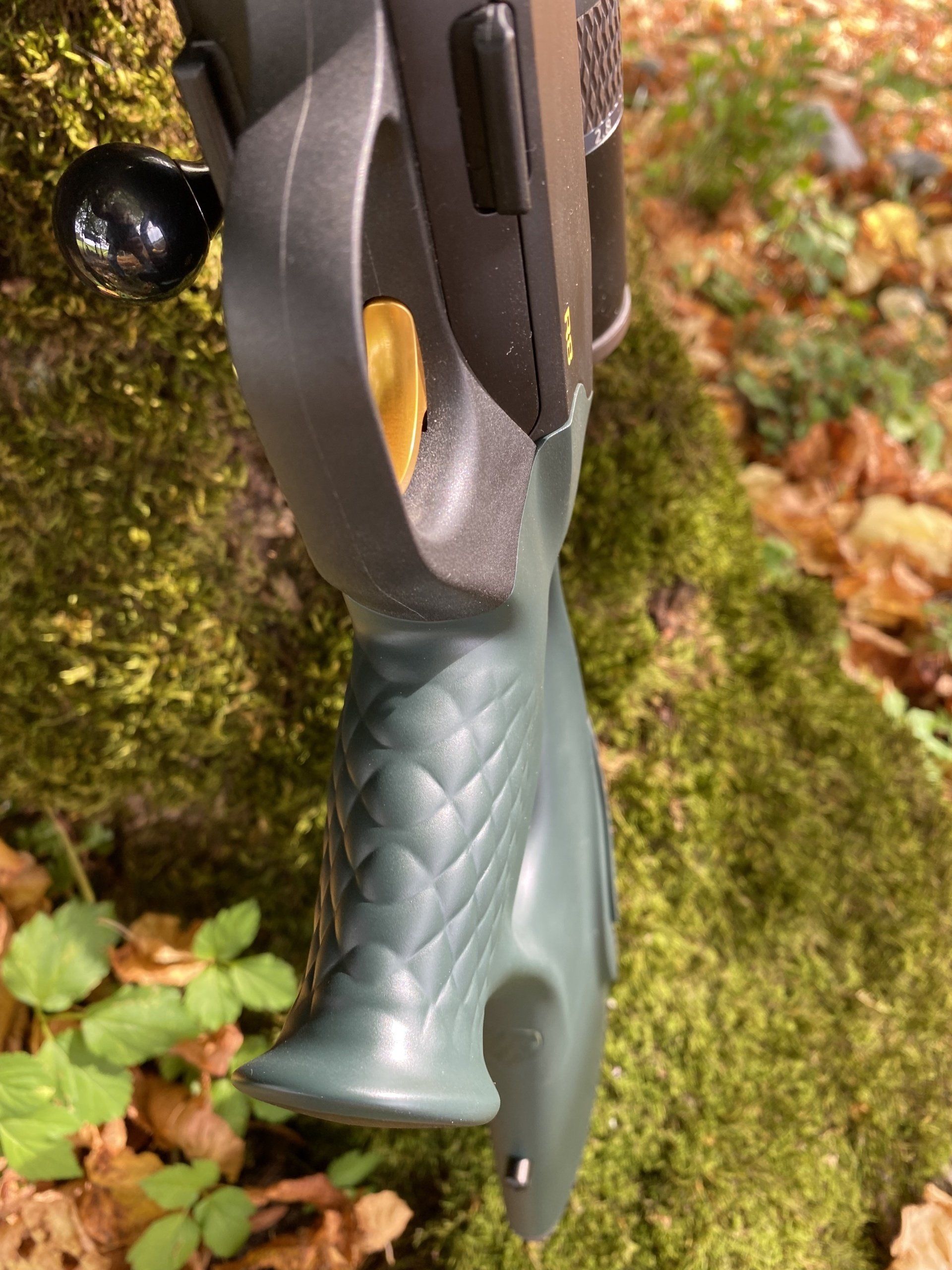

• The pistol grip is shaped so that it
• for smaller and larger hands
• a very good and
• grippy grip
• as it is available in sizes S, M, L and XL, suitable for every shooter.
• The geometry of the pistol grip is based on the natural shape of the hand and therefore fits ergonomically into the shooter's hand.

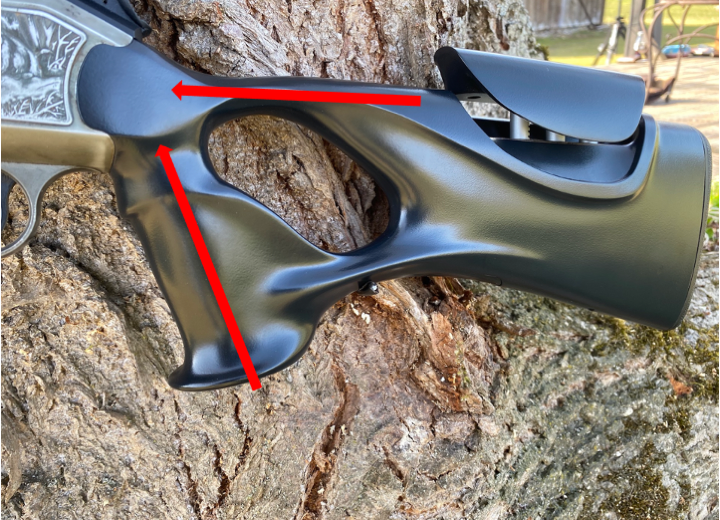

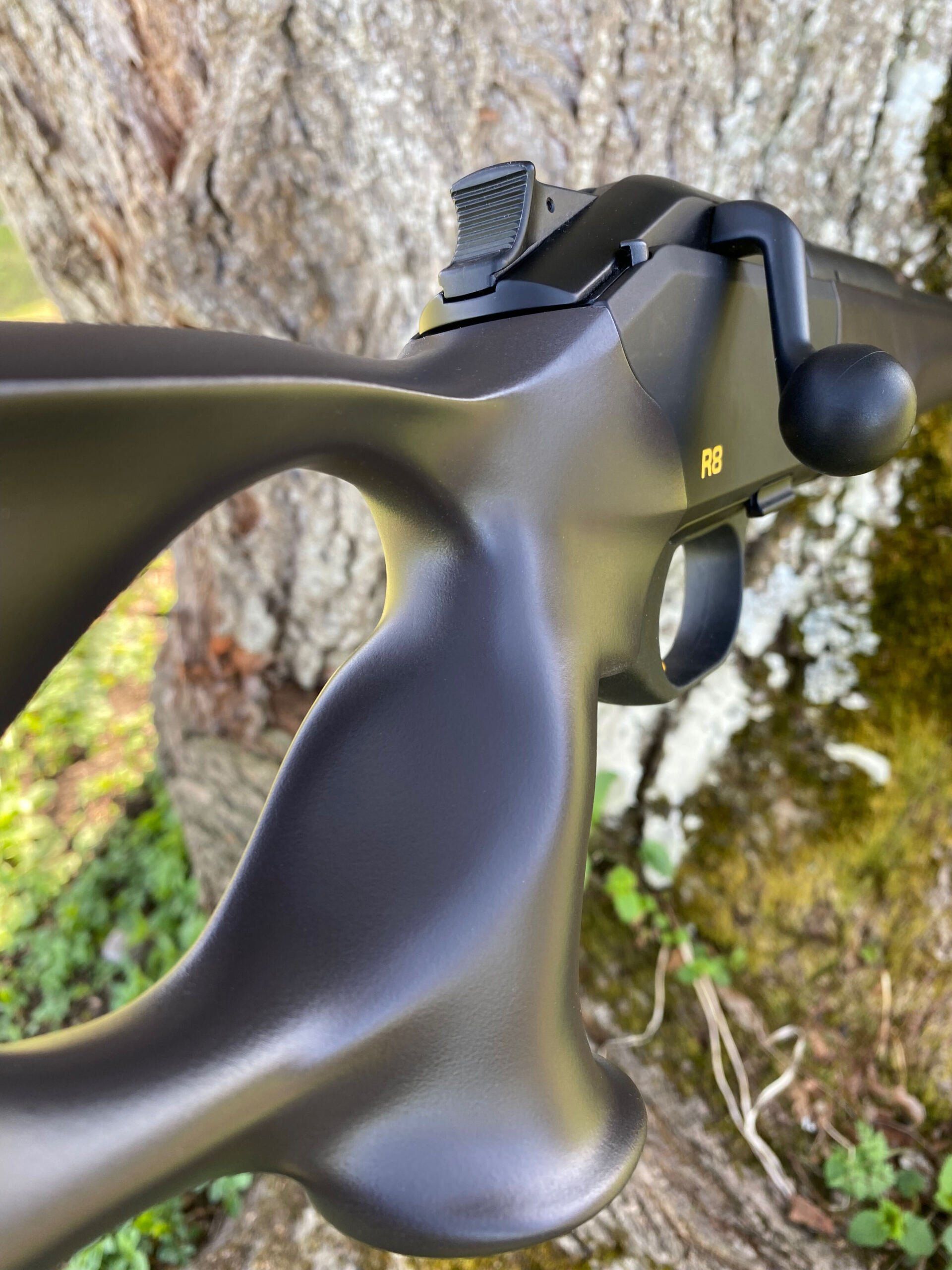

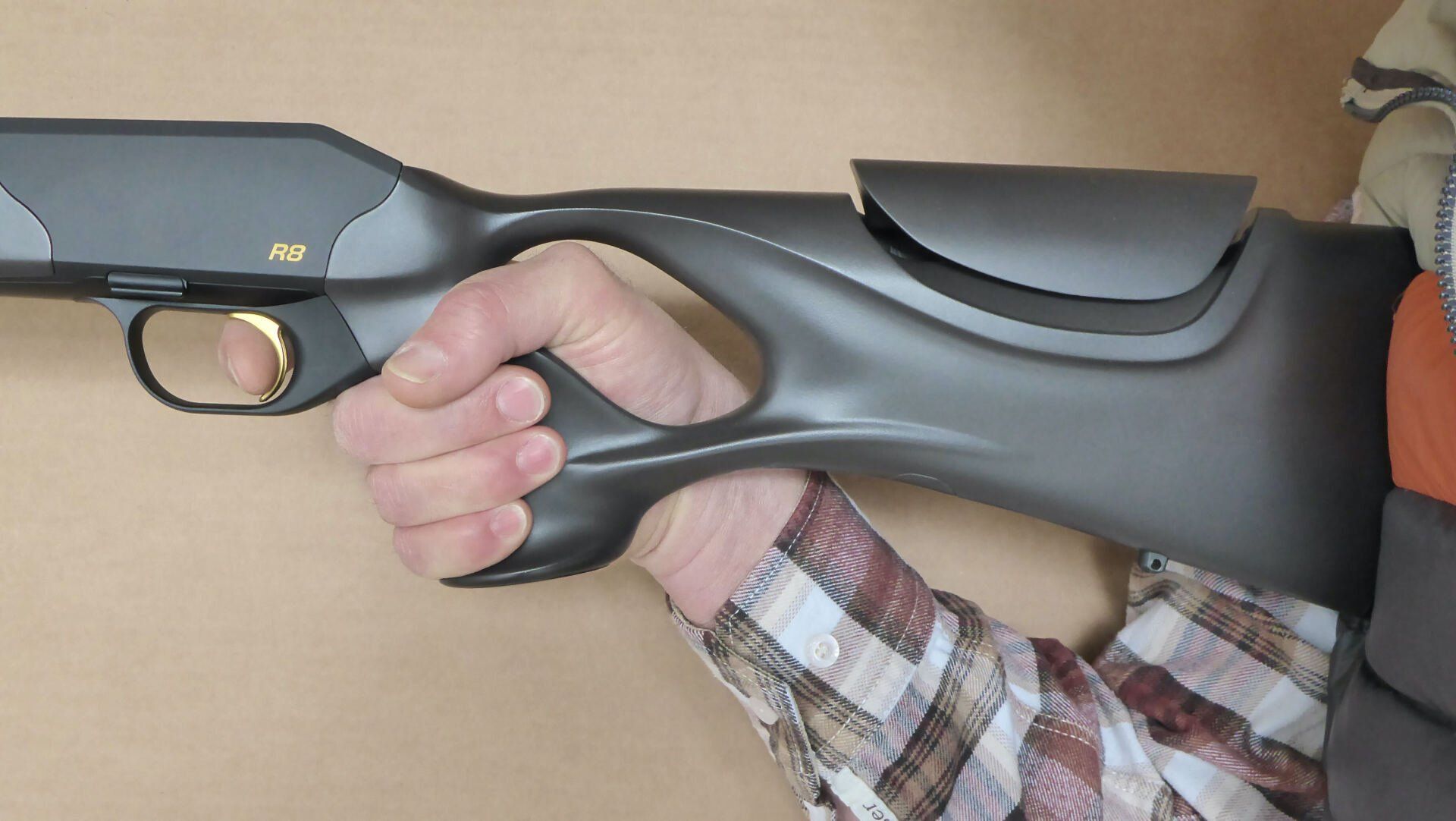

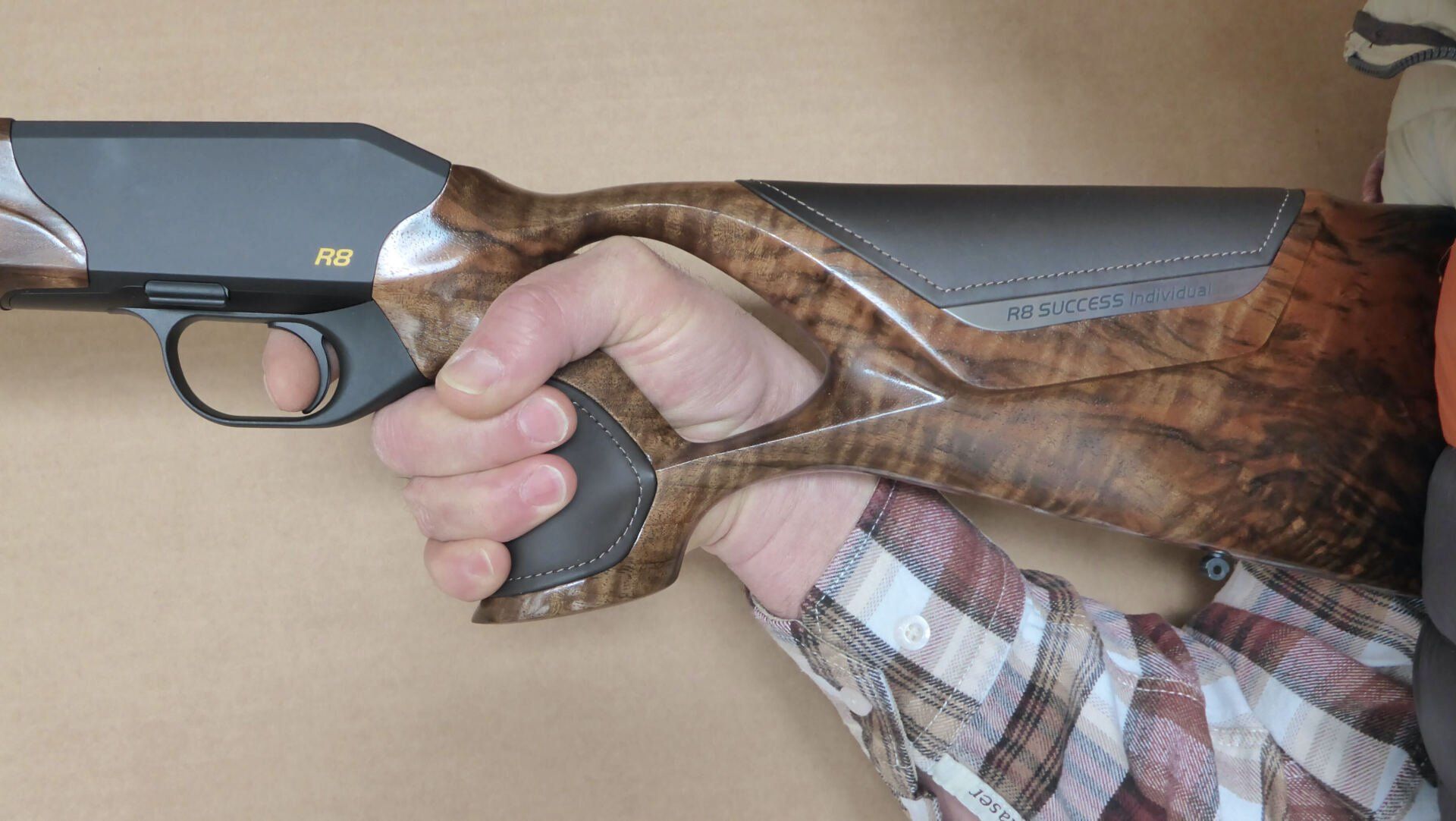

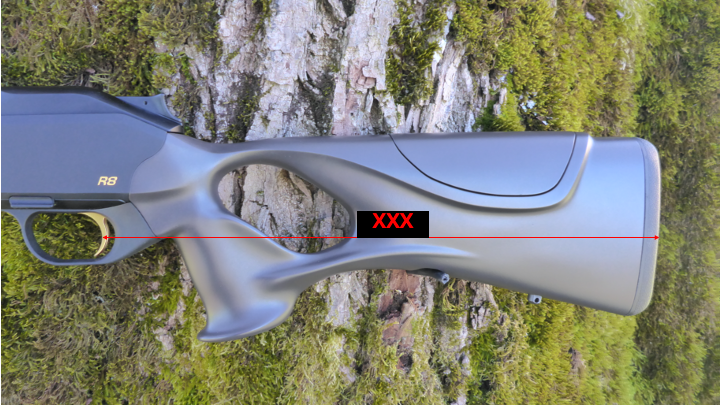

• Compare for yourself between the manufacturer's thumbhole stock and the
• asdm thumbhole stock
• in the following two pictures. In this example, the shooter has the
• hand size L
• !
• Which shaft allows the hand to grip the handle correctly and well?

3.1 Attack:

• Since hunting weapons are no longer guided exclusively via the open sights, but rather via a telescopic sight or red dot sight, the cheek piece of a traditional stock is in a much too low position in order to position the rifle safely and, in the truest sense of the word, effectively and quickly. The stock back is positioned in the area of the upper jaw and therefore does not provide a good anchor point.
• We have the solution for an optimal stop.

(see gallery: attack in comparison).

The solution:

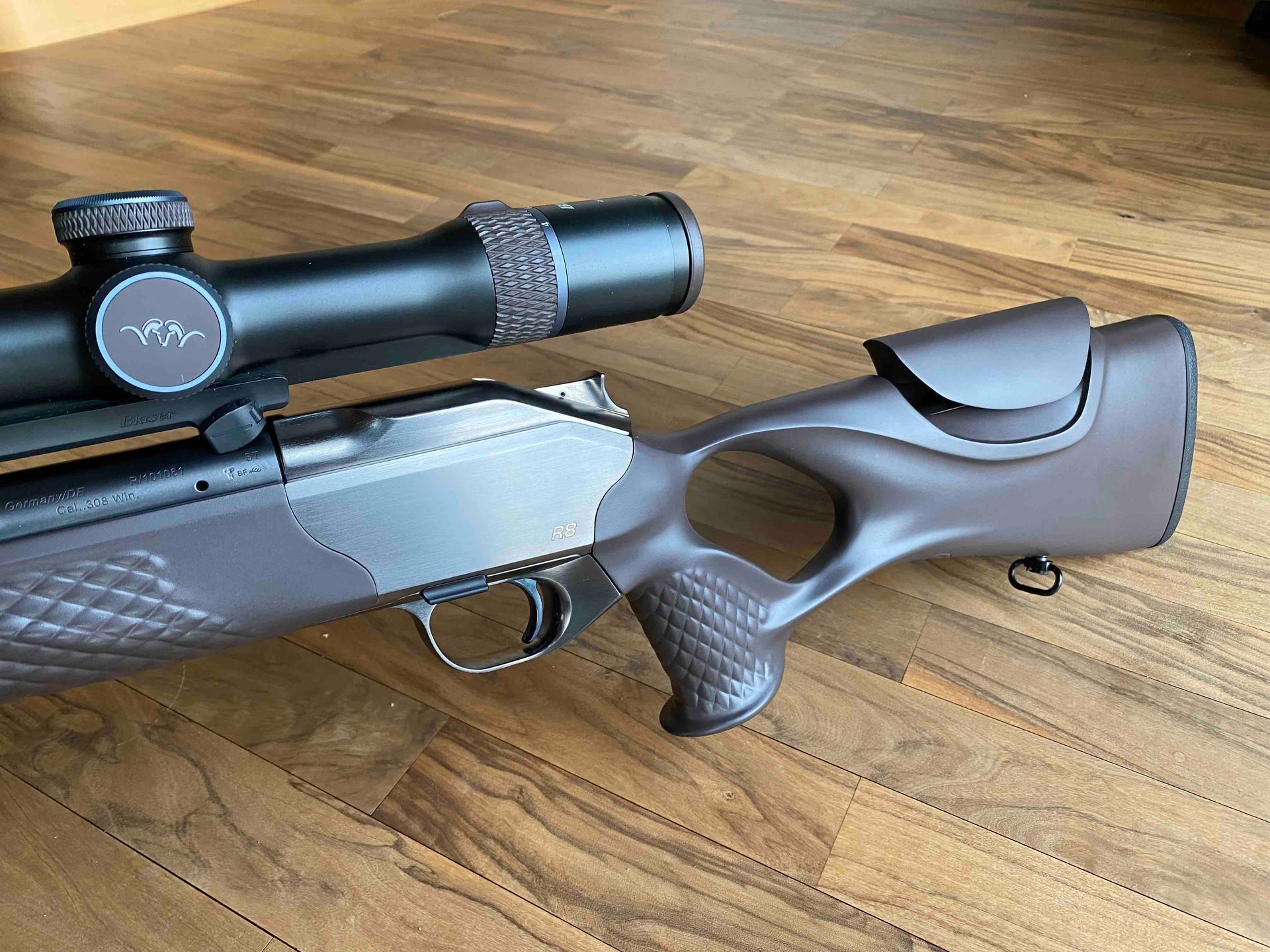

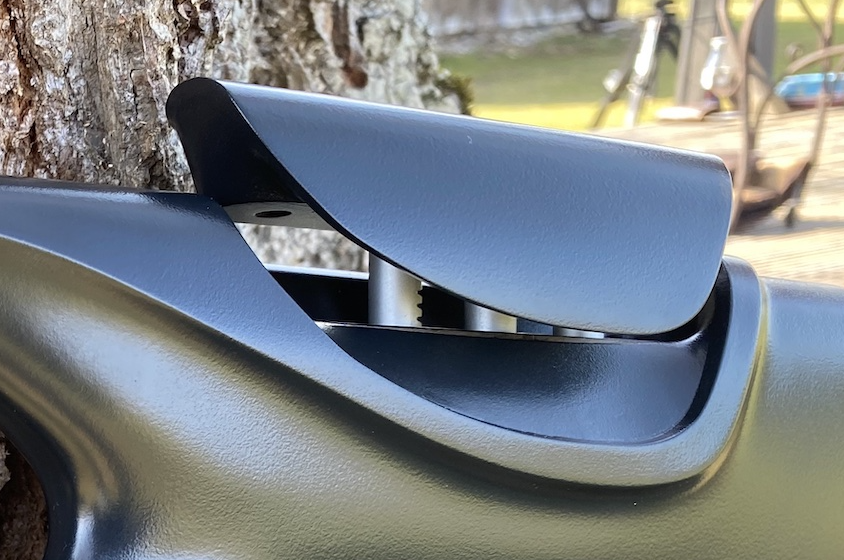

• An individually adjustable comb from asdm.
• Our approach is to position the cheek piece at the only reasonable fixed point in the side of the face, the cheekbone!
• This is also evident in the
• Video, fast repetition.

• Our goal was to complete function in the buttstock to integrate, so that visually a traditional and elegantly slim design is still created.
• In the buttstock
• no KickStop
• be installed,
• the one for this
• The space required was used to accommodate the mechanics of the adjustable stock comb.

Steering:

• The extension function is controlled by a control button on the underside of the shaft.

  Damping:

  • The cheek piece is extended quiet because we have integrated a mechanism that dampens the lifting movement.




3.2 Fast repetition:

• The fast and safe repetition is absolutely guaranteed, the raised stock spine keeps the target in focus!

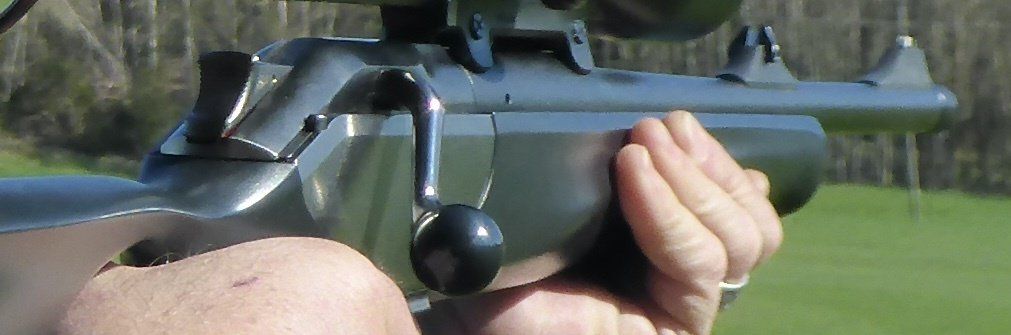

• It is not necessary to leave the grip recess with your thumb. This means you can quickly and safely return to the trigger position!
• (see video below)

3.3 How does it work?

• The height stop, which can be individually adjusted to the desired extension height, is also set with repeatable accuracy using this control button. It is possible to adjust the stock comb in 2.5mm incrementsindividually to be flexibly adapted to the ergonomic requirements of the shooter and the respective hunting situation (e.g. stand hunting, driven hunting, stalking, mountain hunting, tracking or long range as well as with the different aiming devices from open sights to large rifle scopes).
• The max.
• extension height
• amounts
• 35mm
• .
• To fully extend the comb, press the control button all the way in.
• If the button is held in the fully depressed position, a stop unit is fixed at the same time.
• Now the stock can be pushed to the desired height.
• If you now release the control button, the comb stop is positioned and you have set the extension height to your desired height. This position will now remain set until it is reset again!
• Now the control button can only be pressed in halfway and then the stock comb can be pushed in completely.
• If you now press the control button again only lightly, the stock comb will only extend automatically to the position you have preset (memory function).

(see video below)

• The extended stock comb is secured by a sophisticated mechanism absolutely recoil-proof held in position!

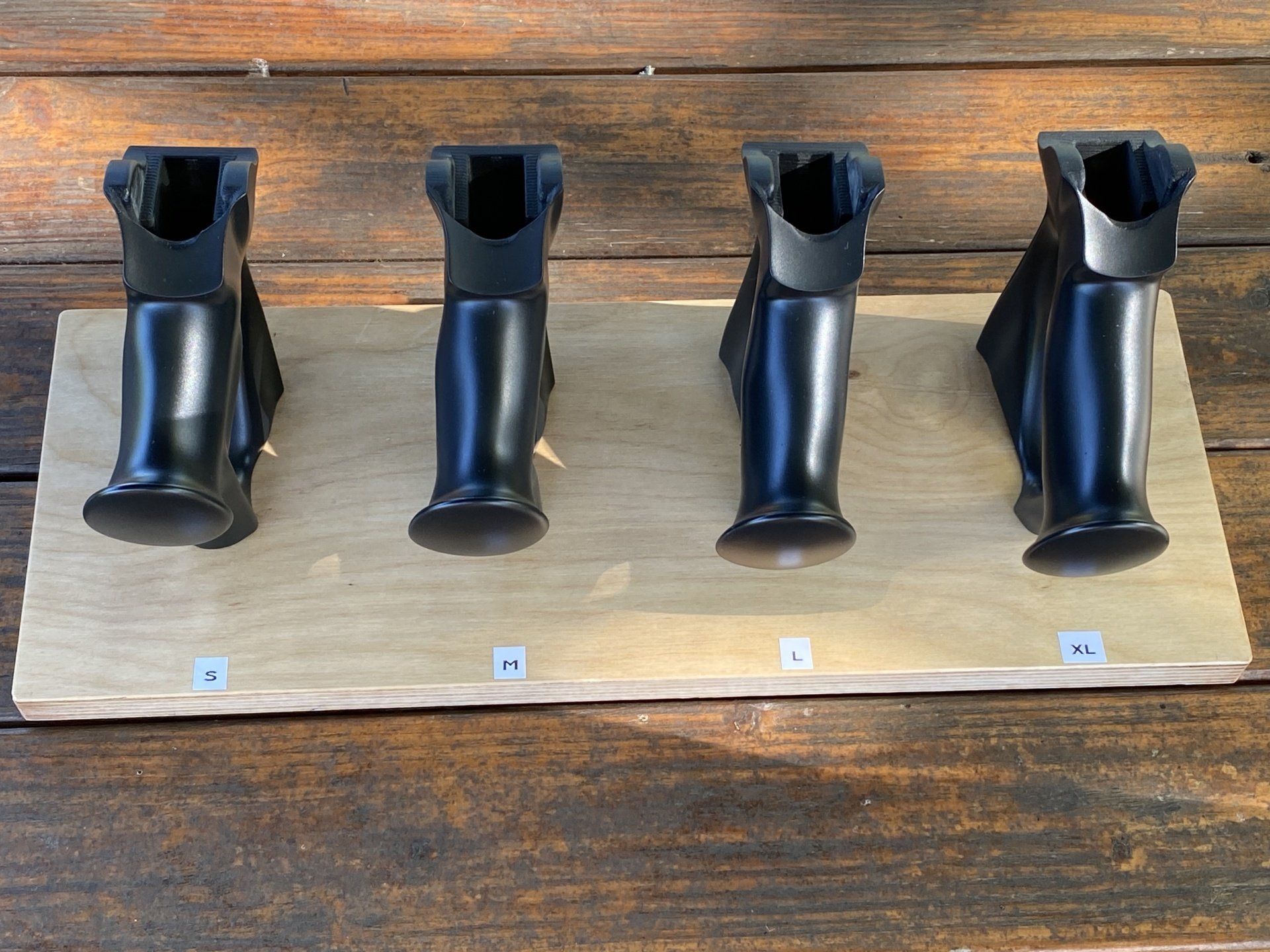

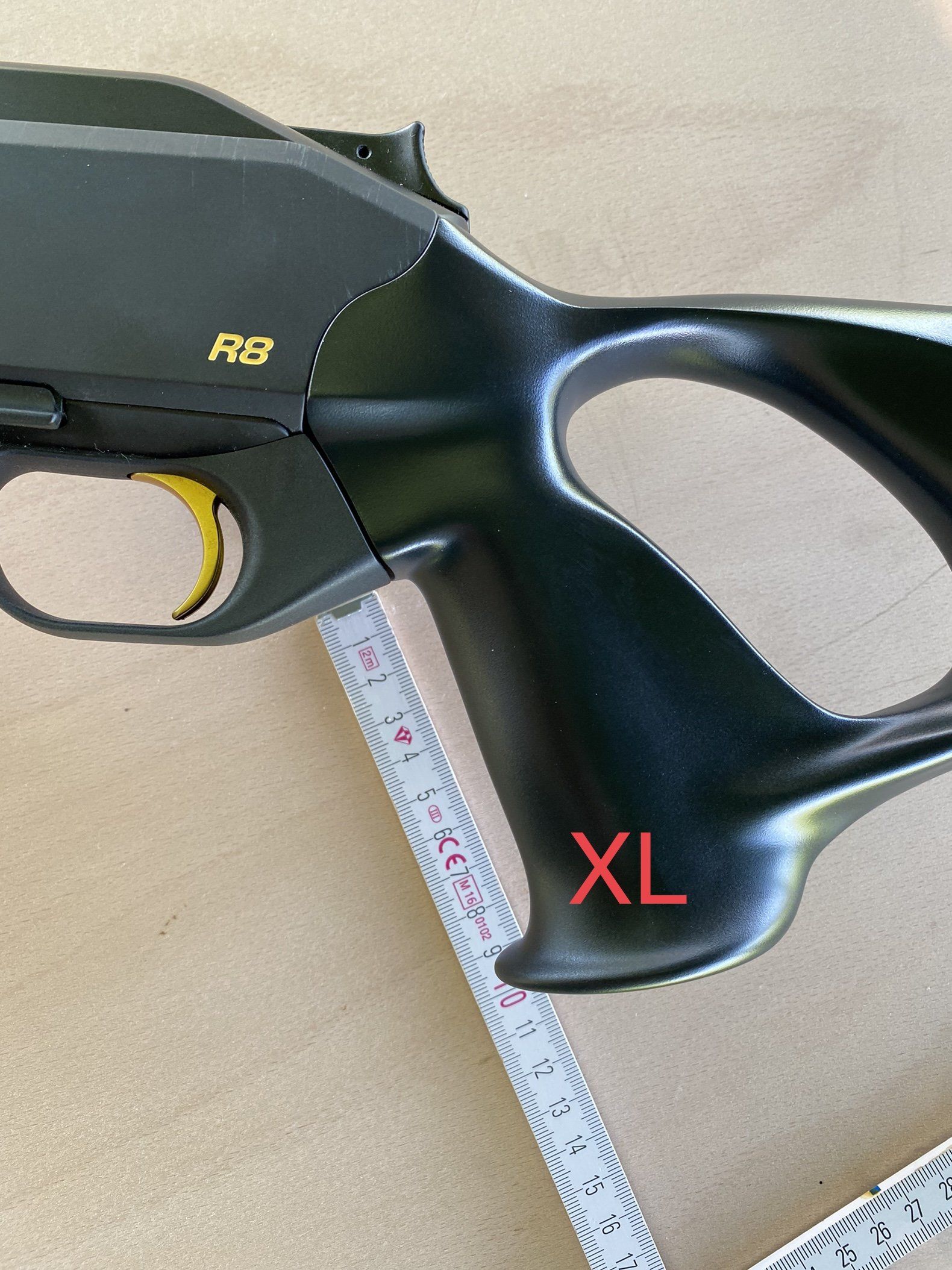

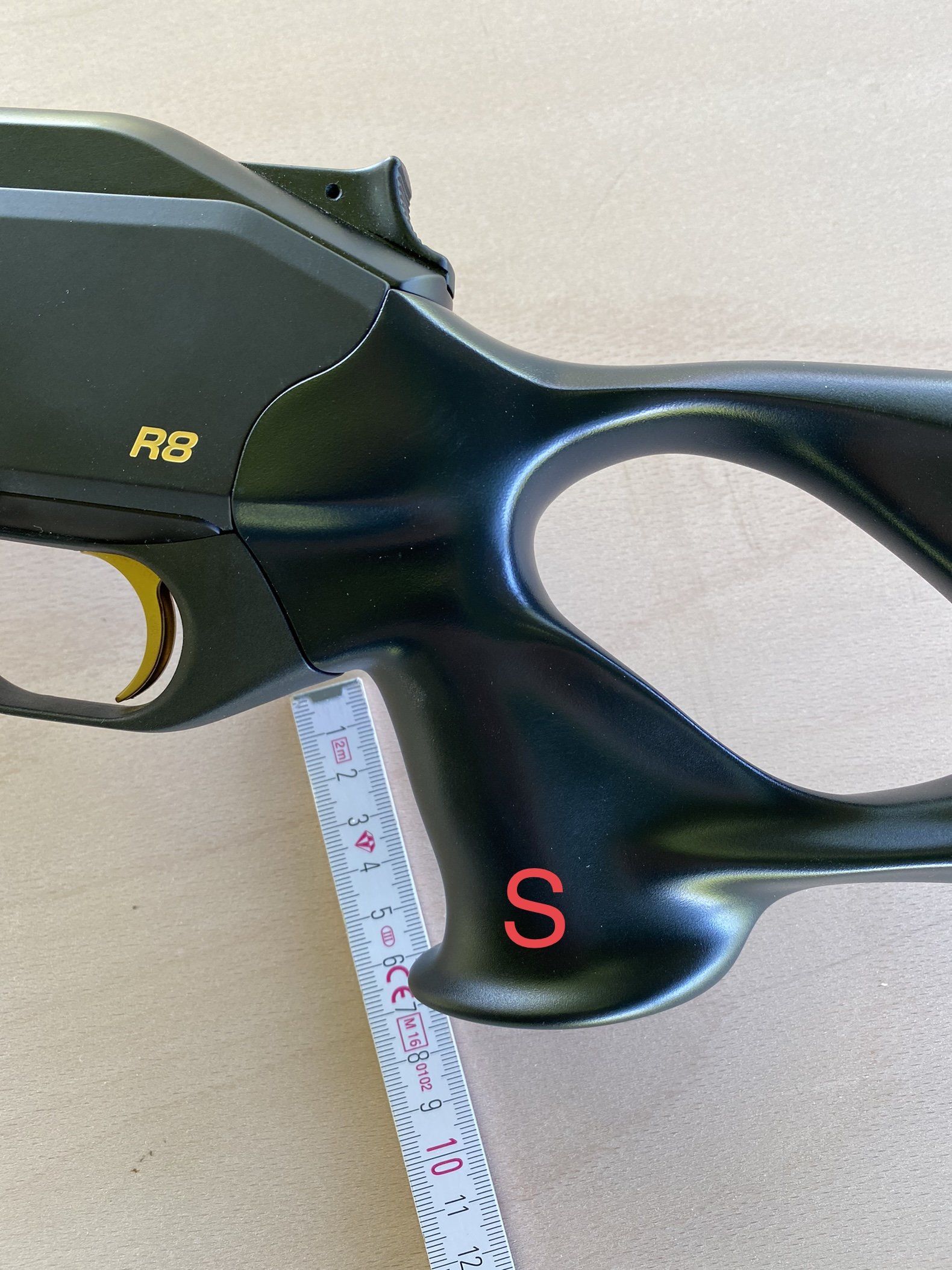

4.1 Four different pistol grip sizes: S, M, L, XL

• There is a good reason why clothing does not just come in size M, or shoes in size 42.
• We all have different sized hands, small and delicate as well as large and strong!
• A weapon must be held securely and comfortably so that you can wait longer for the right moment to make a good hit.
• asdm offers the right shaft geometry and therefore the right pistol grip size for everyone!
• There are four different sized handles to choose from: S, M, L and XL.
• We also like to thank the intended for women, who in our experience will find the right thing primarily in size S up to a maximum of M!

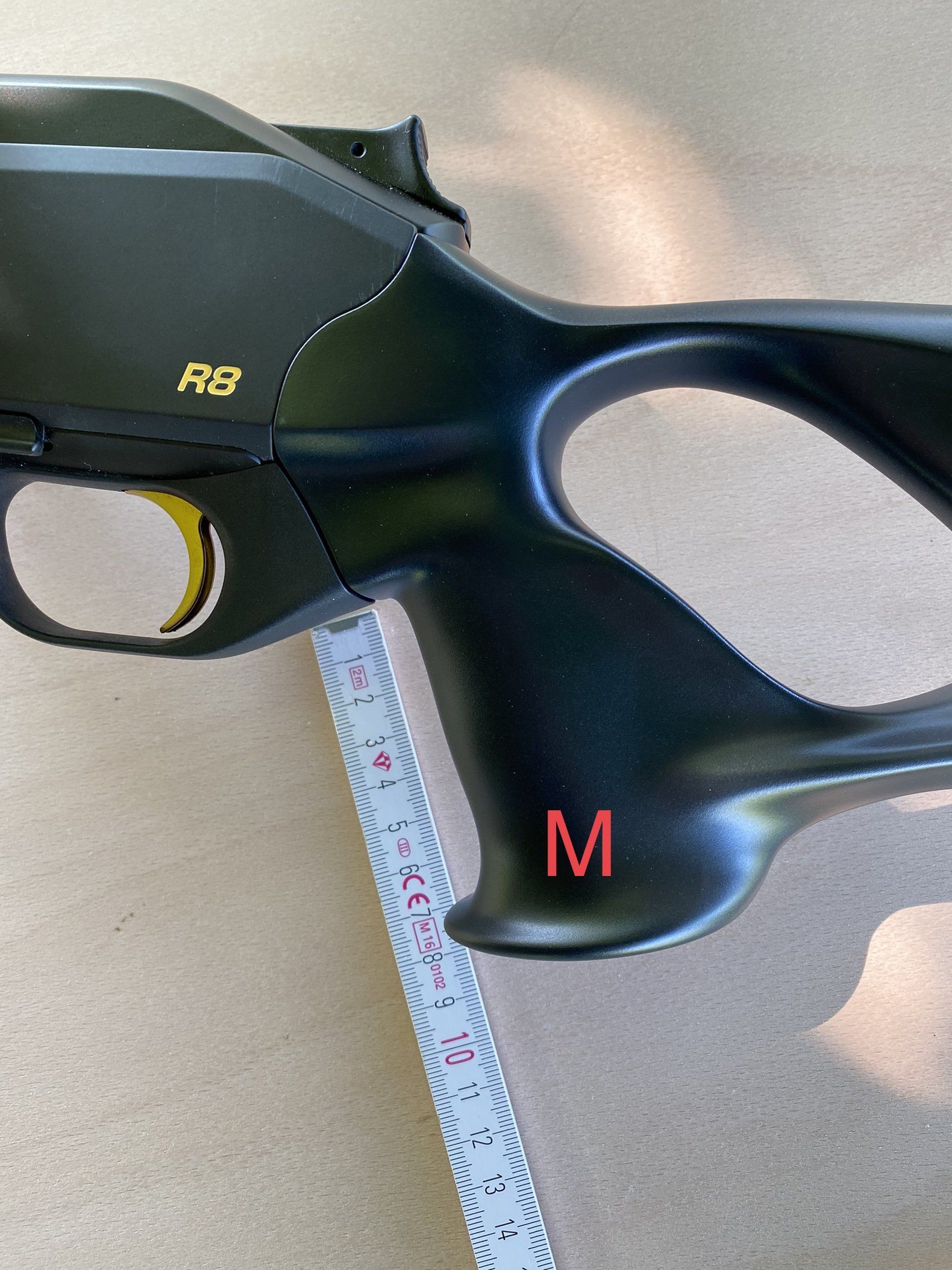

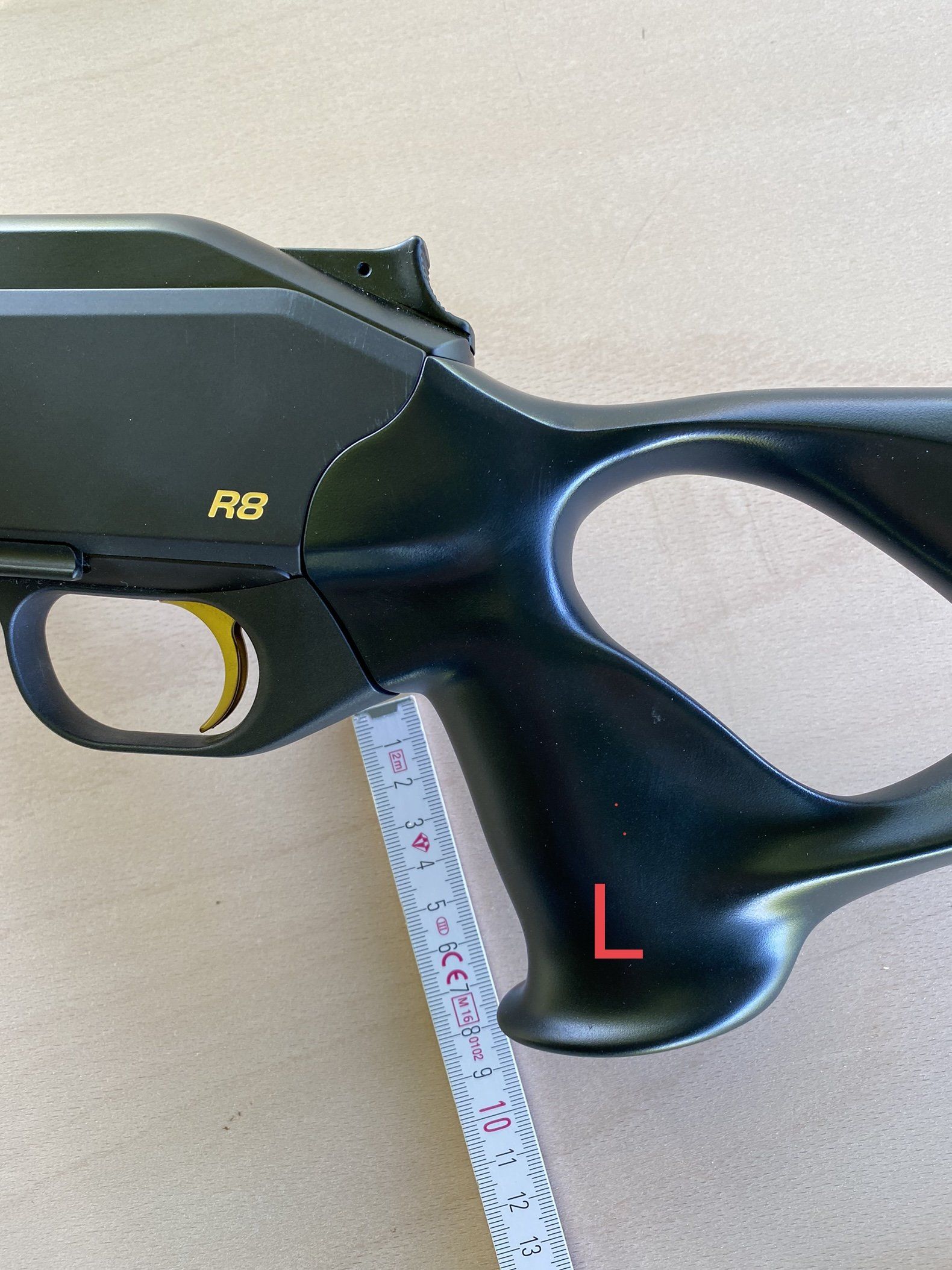

4.2 Dimension table handle sizes:

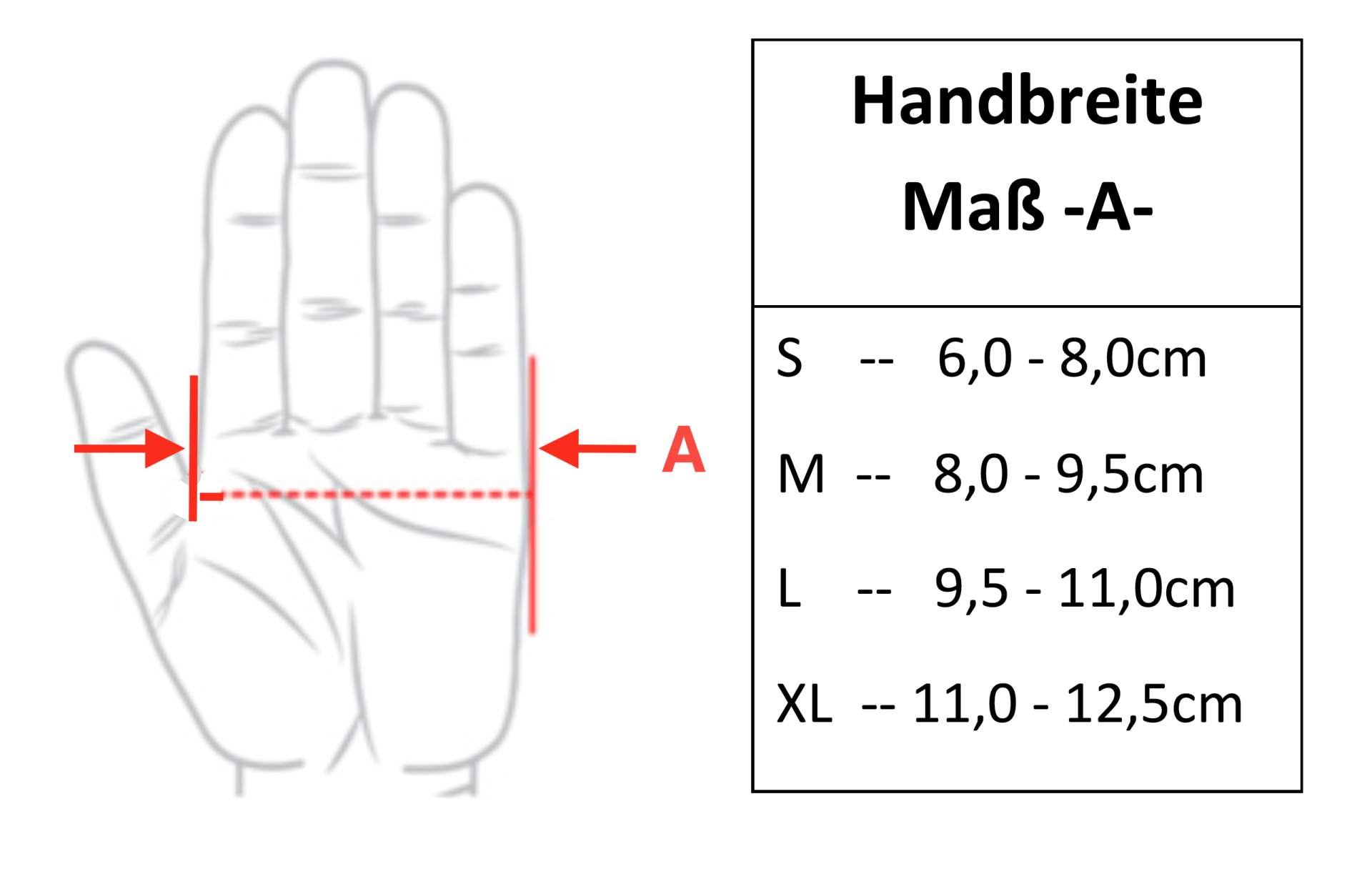

• To decision support we have a size chart to give you an idea of what the right size is for you.
• We recommend:
• If your measurement is exactly at the upper limit of a handle size, please choose the next larger size.
• You should always consider whether you primarily shoot or take aim with or without gloves.

to open the gallery please click on a picture:

compare for yourself:

• We try to illustrate the difference to the usual shafting in a visual comparison (see button below)Of course, it is even more convincing when you hold the asdm shaft in your hands.
• Make an appointment with us, we will be happy to advise you in our office.

6th Buttstock length:

• We supply shaft lengths from 360mm to 390mm (special lengths on request).

7th Barrel diameter:

• The fore-end is available for R93 & R8 Blaser barrels in diameters of 17mm (hunting), 19mm (semi) and 21mm (safari), as well as 31mm (R8 silence). (Special dimensions on request, e.g. Atzl barrel or Chrisensen barrel)










What is the barrel diameter of your weapon?

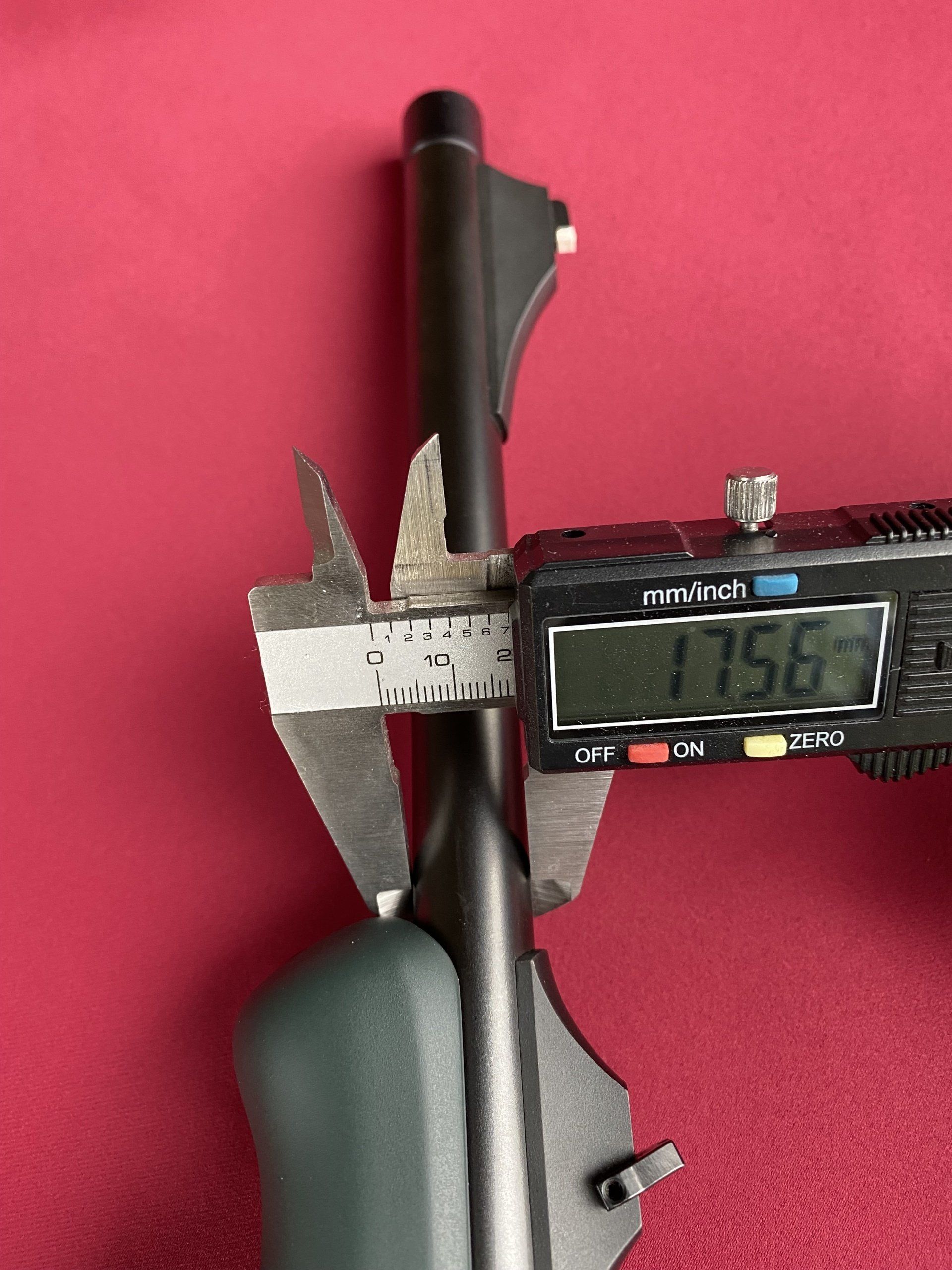

Since a barrel usually has a conical outer diameter and may have been shortened, measure the barrel at the end of the forearm for orientation and select the appropriate index designation in the order! (see the following example: measured value is 17.56mm, the appropriate index is #DM17 in the order form)

8th Colors:

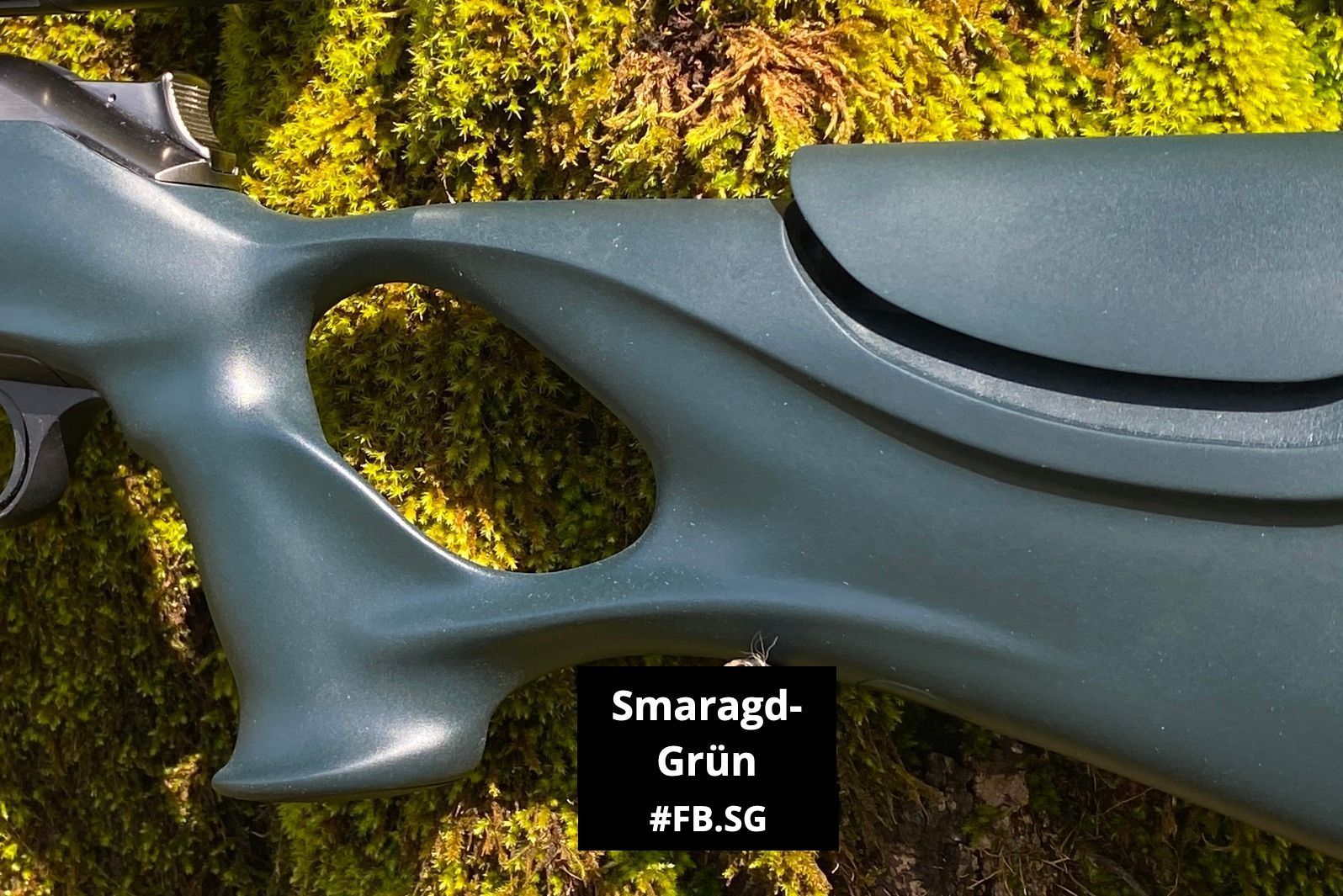

• 7 colors are available as standard (see color gallery).

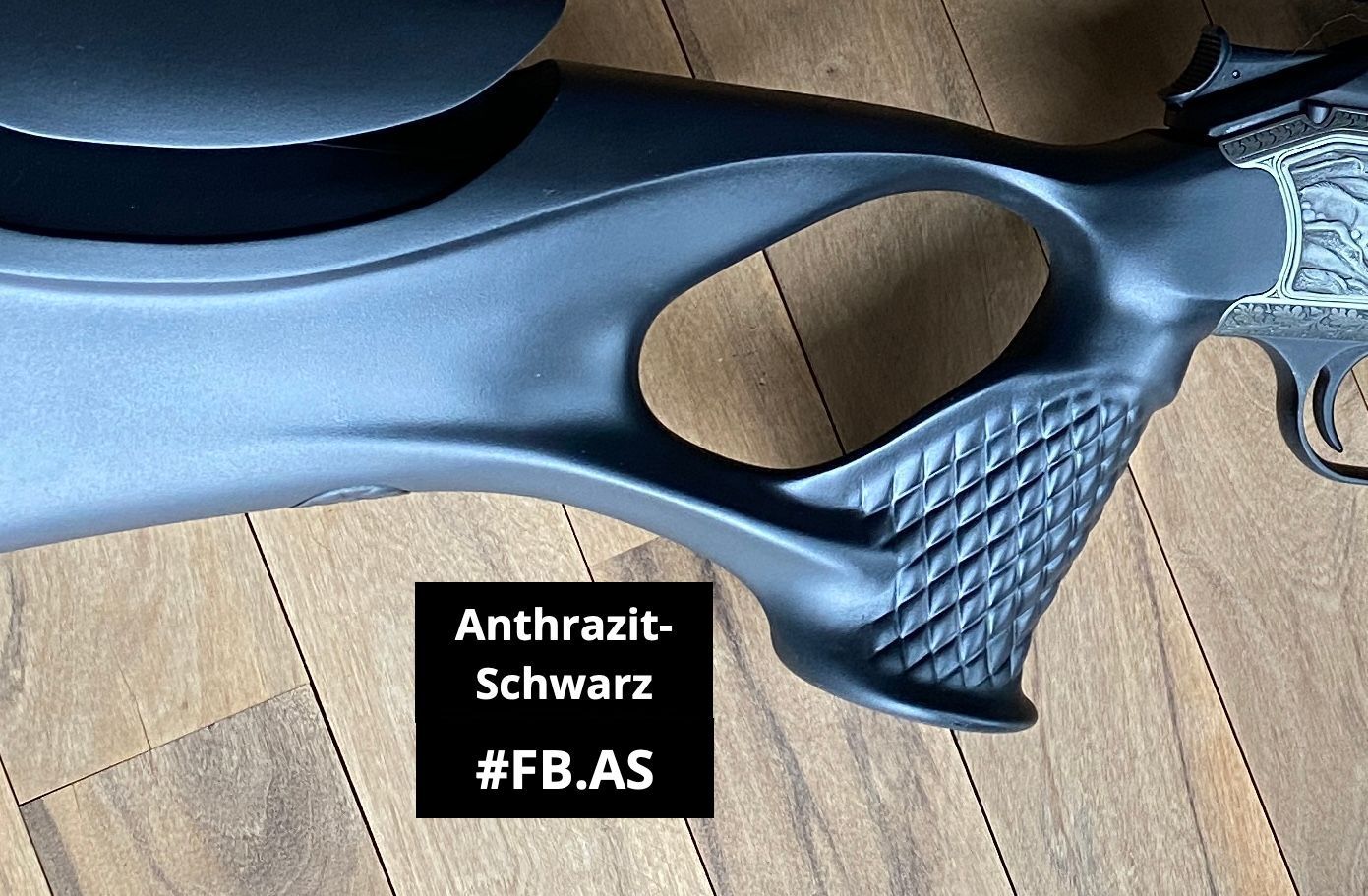

• anthracite-black

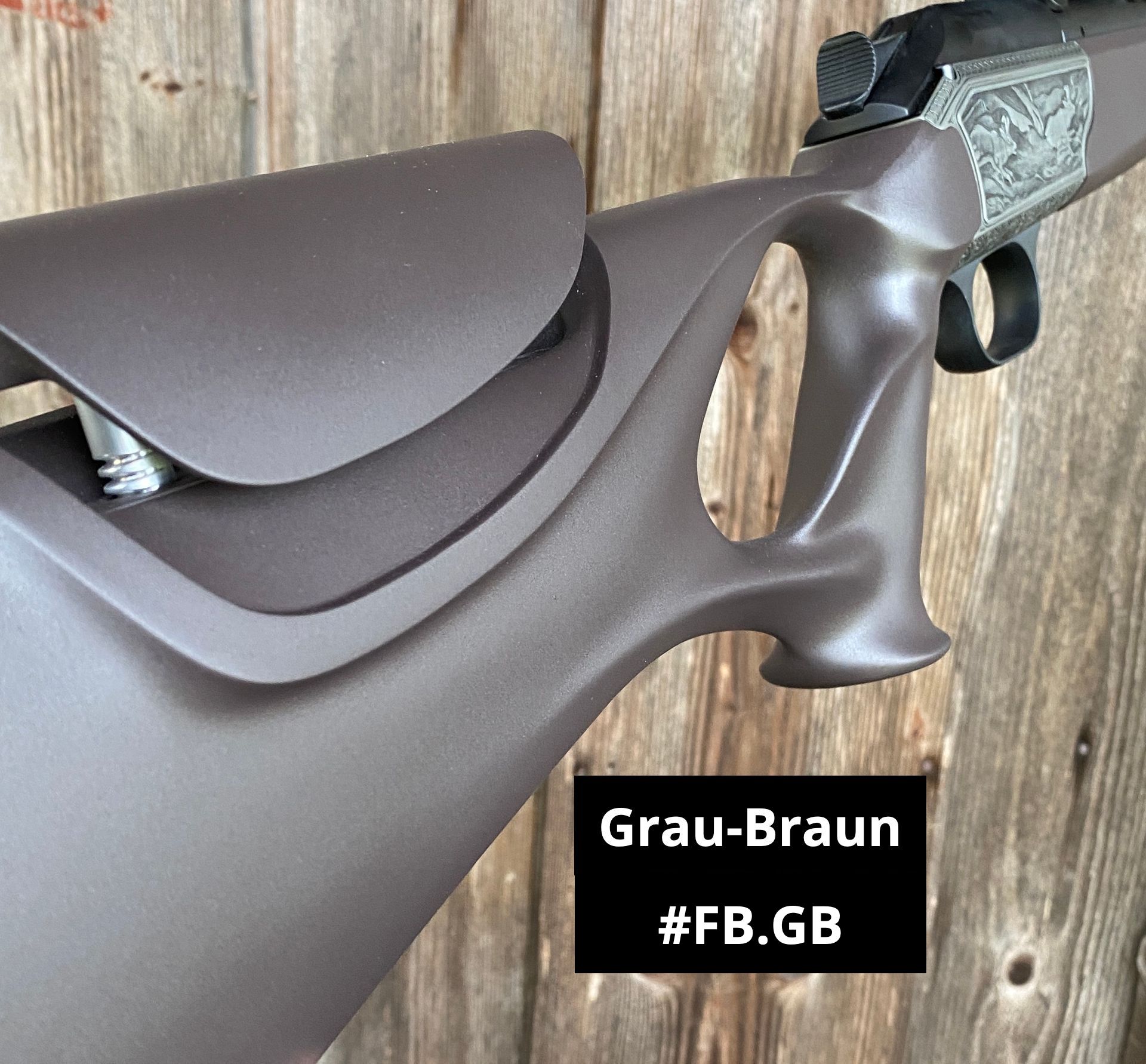

• gray-brown

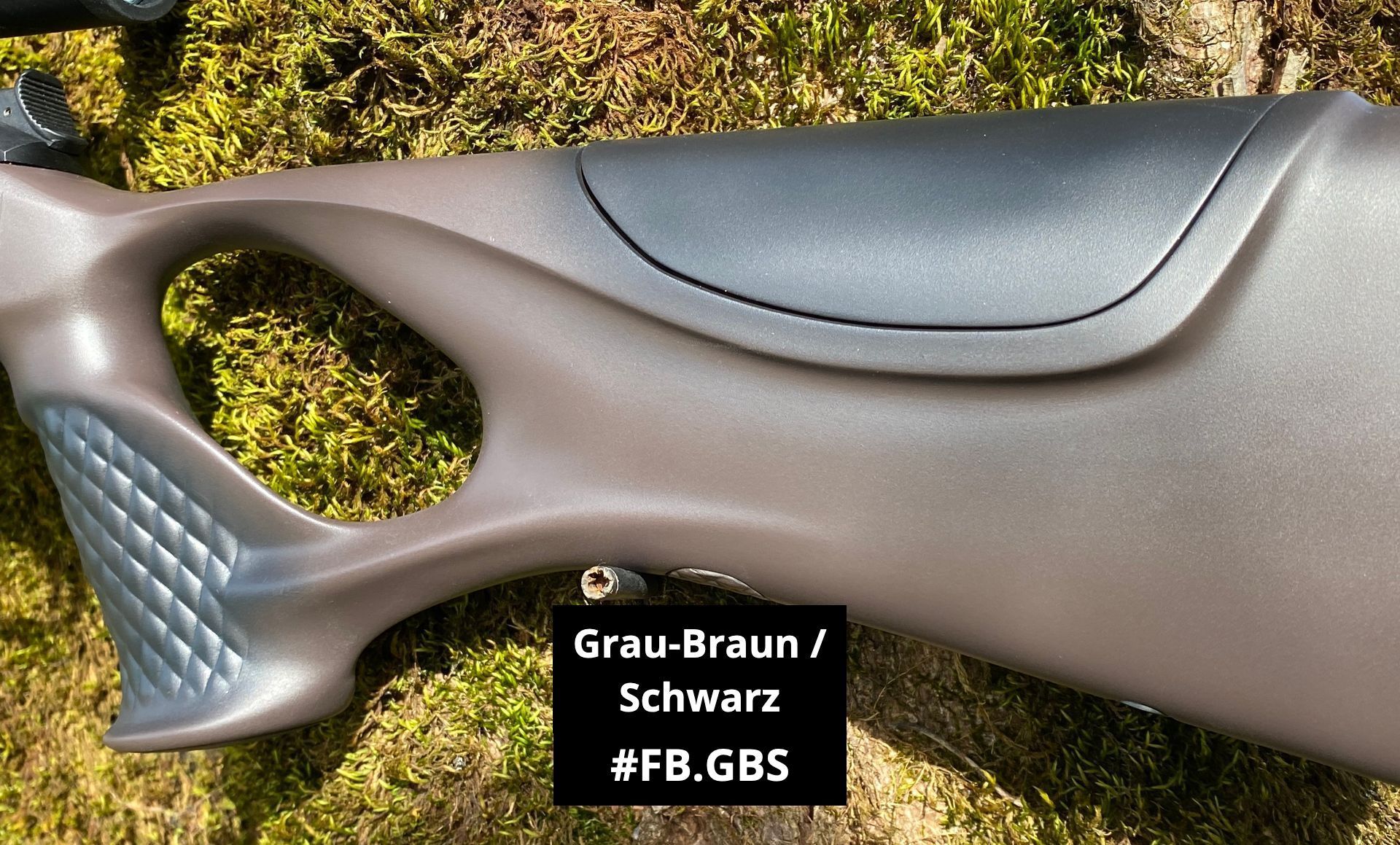

• Grey-brown / black in the grip area and cheek piece ( 100€)
• emerald green
• Emerald green / black in the grip area and cheek piece ( 100€)
• Bordeaux red
• Bordeaux red / black in the grip area and cheek piece ( 100€)

(Special colors on request)

color gallery

to open the gallery please click on a picture:

9th Pistol grip cover:

• Each rifle stock is for free delivered with the asdm logo and the customer's personal initials.
• This gives your hunting rifle an individual, personal touch.

10th Sound:

• The asdm shaft sounds not hollow as is usually the case with plastic or carbon shafts, because it is not hollow!
• Rather
• dull and valuable like a wooden shaft
• This is achieved through a special structural design and by eliminating unnecessary cavities inside the shaft.
• But,
• compare the sound yourself
• : in the following video we have shown an acoustic comparison! In the order:
• wooden shaft
• asdm shaft
• plastic shaft.

Turn on the sound!

11th Surface:

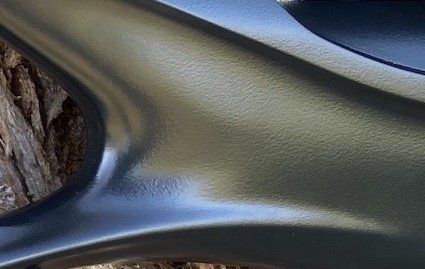

• The surface is covered with a very robust and grippy Surface structure that feels velvety soft, although it is not a soft-touch coating. The newly developed 2K coating for our product is processed in a matt finish.

• The asdm shafts are extremely easy to care for and scratch-resistant, and can be cleaned with a soft cloth moistened with water.

Additional option Chestergrip 300€

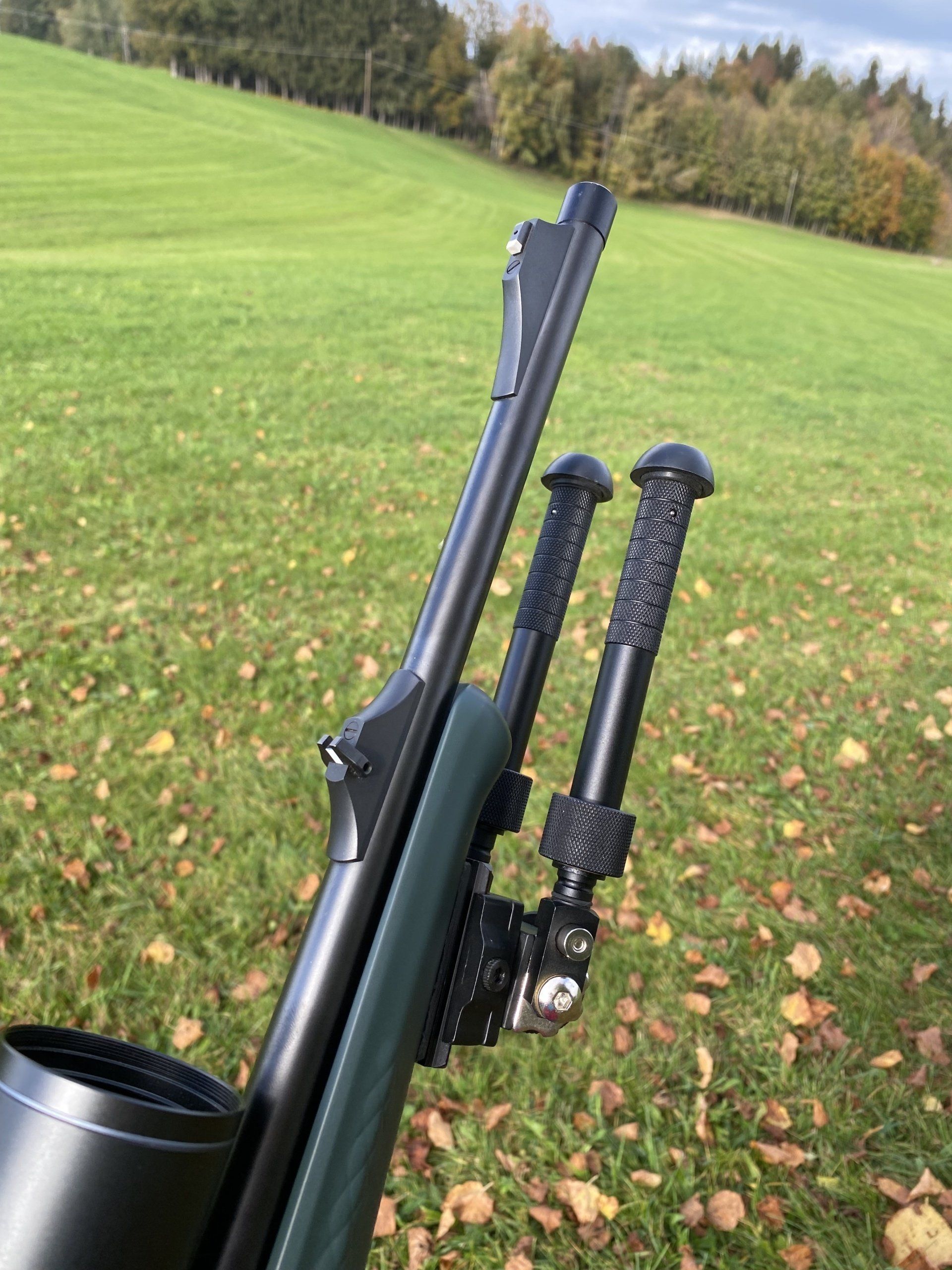

• A Picadinny rail can be selected as an additional option.

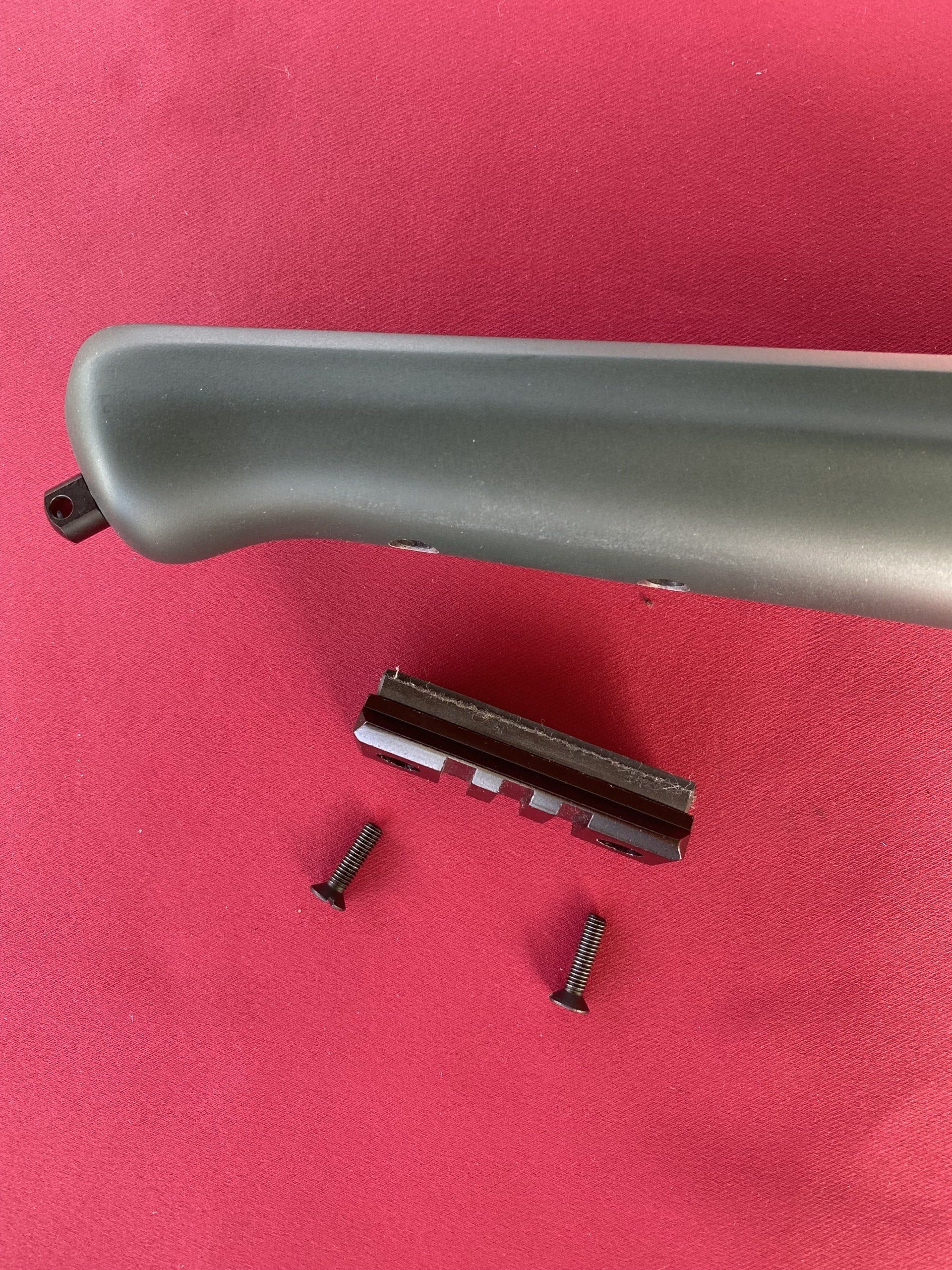

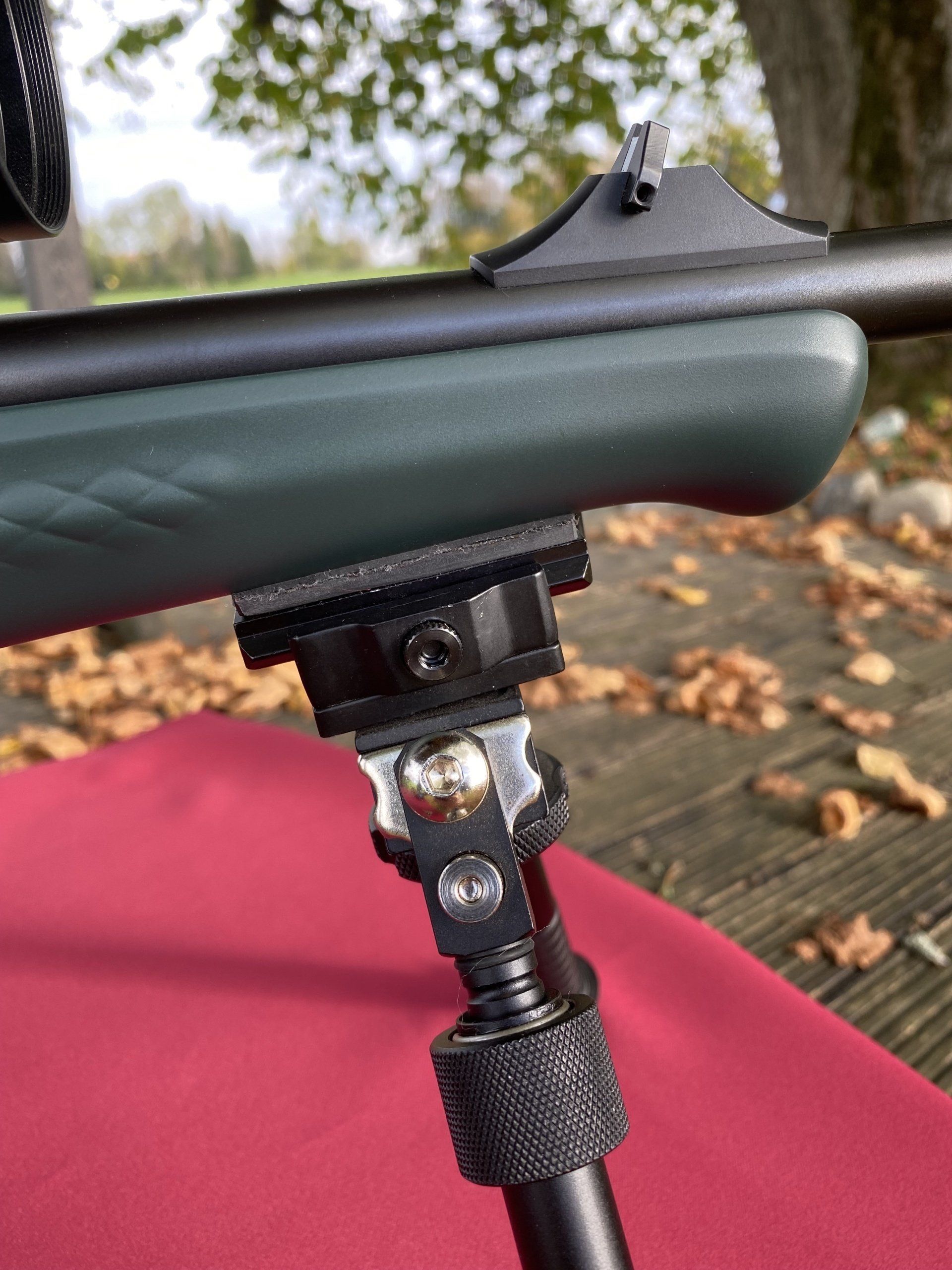

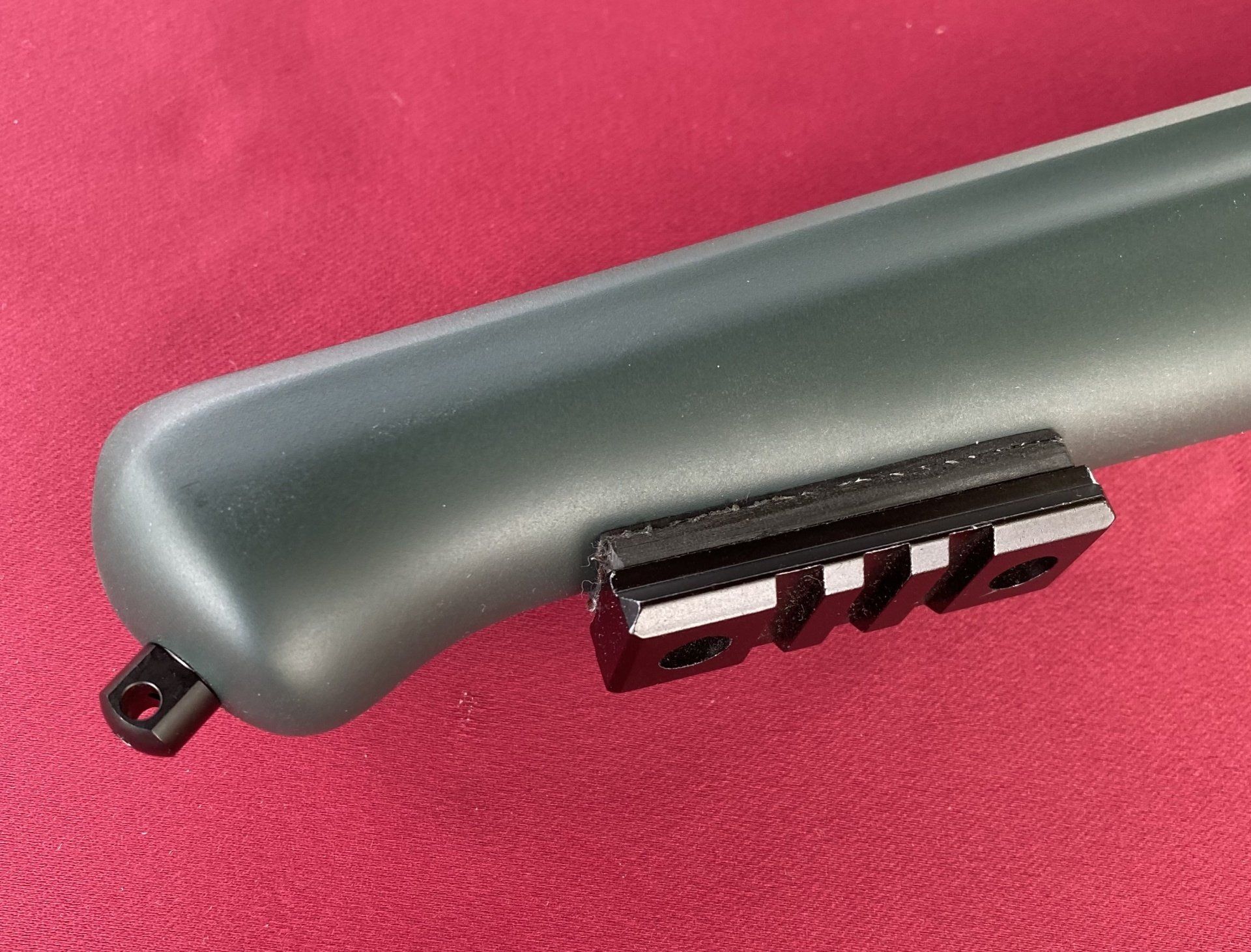

• The Pic. rail is 57mm long and is securely and stably screwed to the fore-end using an adapter that has been specially adapted to the profile and can be removed again at any time.

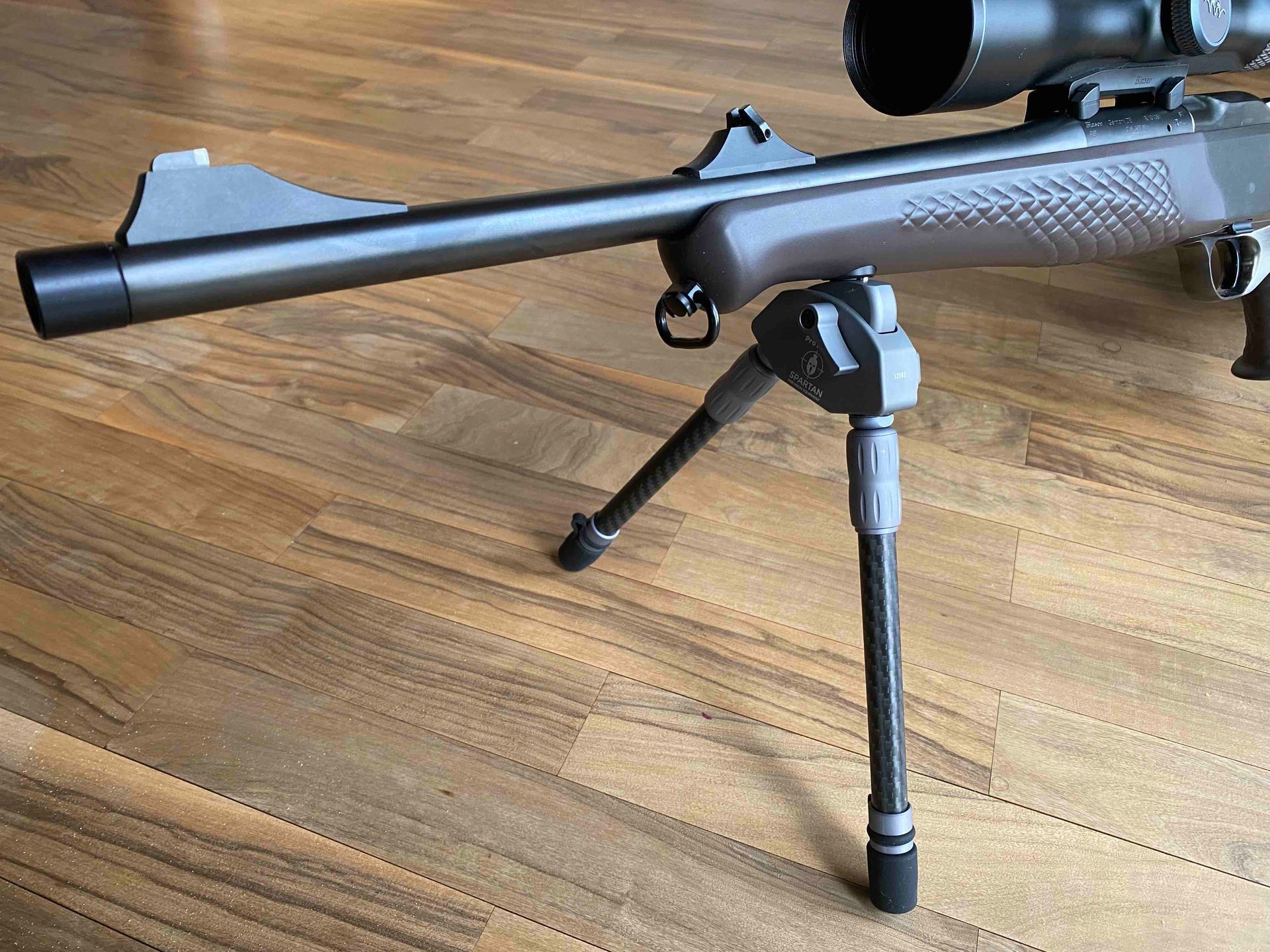

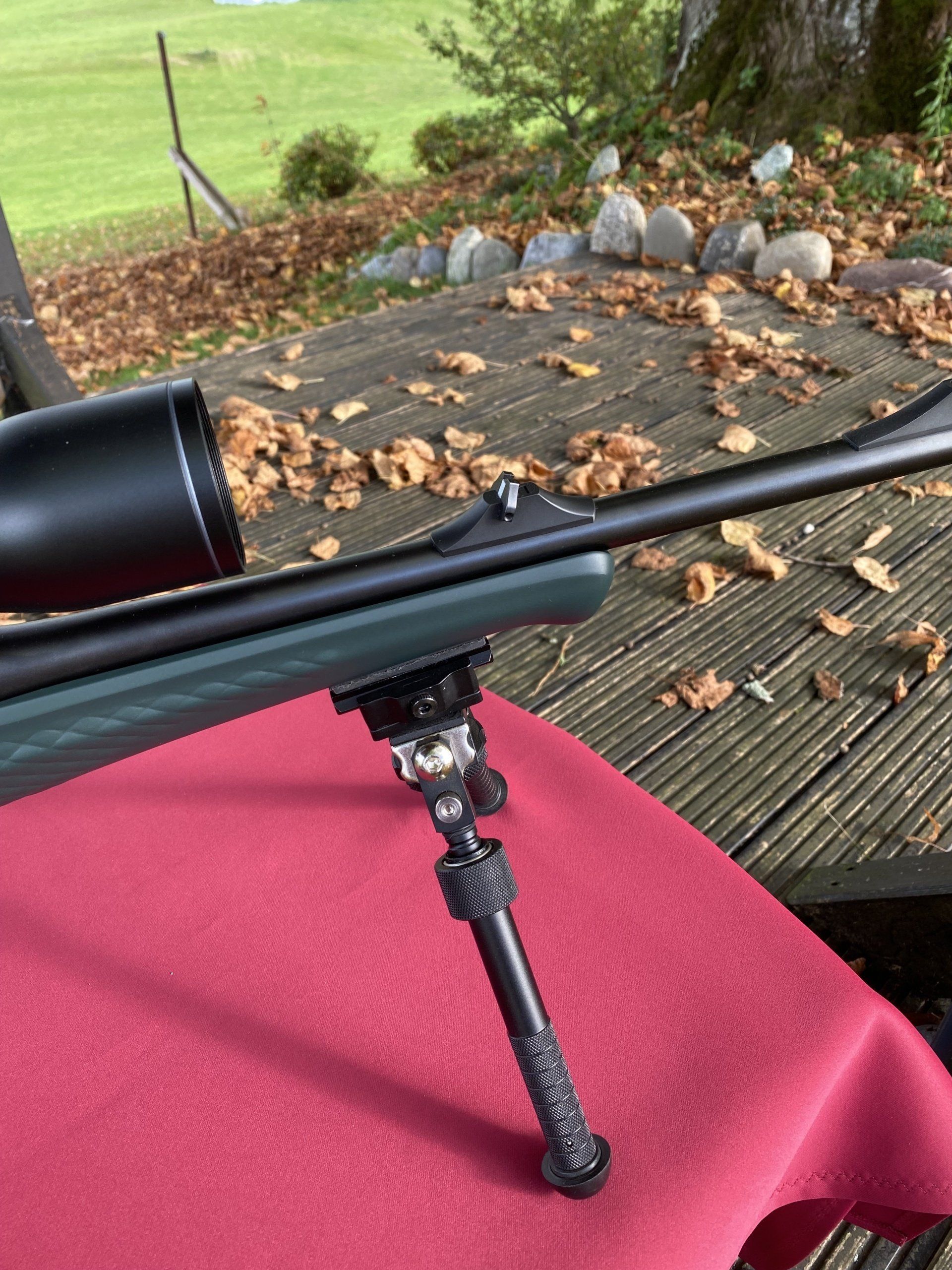

• It offers the possibility of mounting a bipod, for example.

Additional option Picatinny 75€

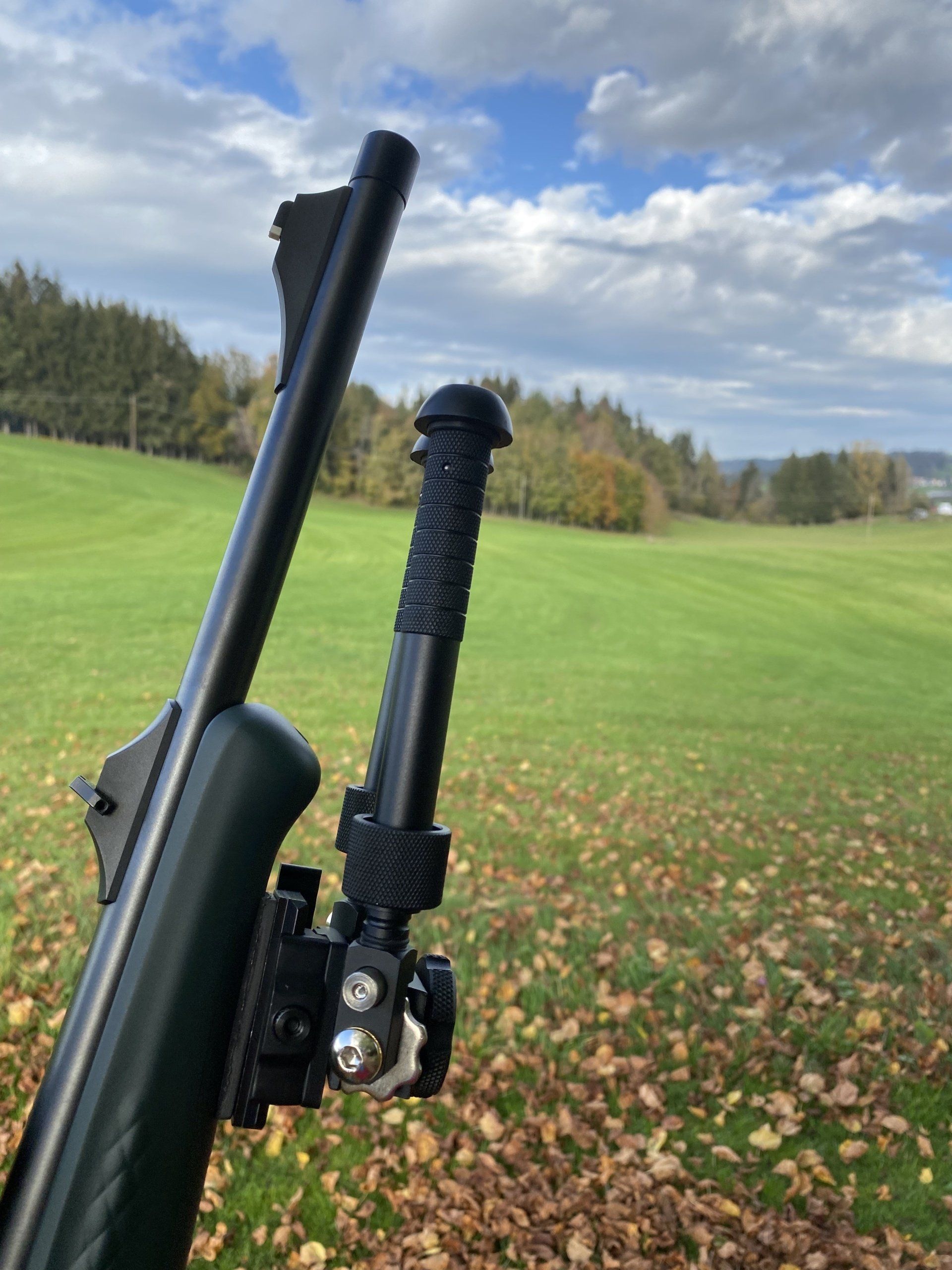

14th Socket for bipod Blaser / Spartan:

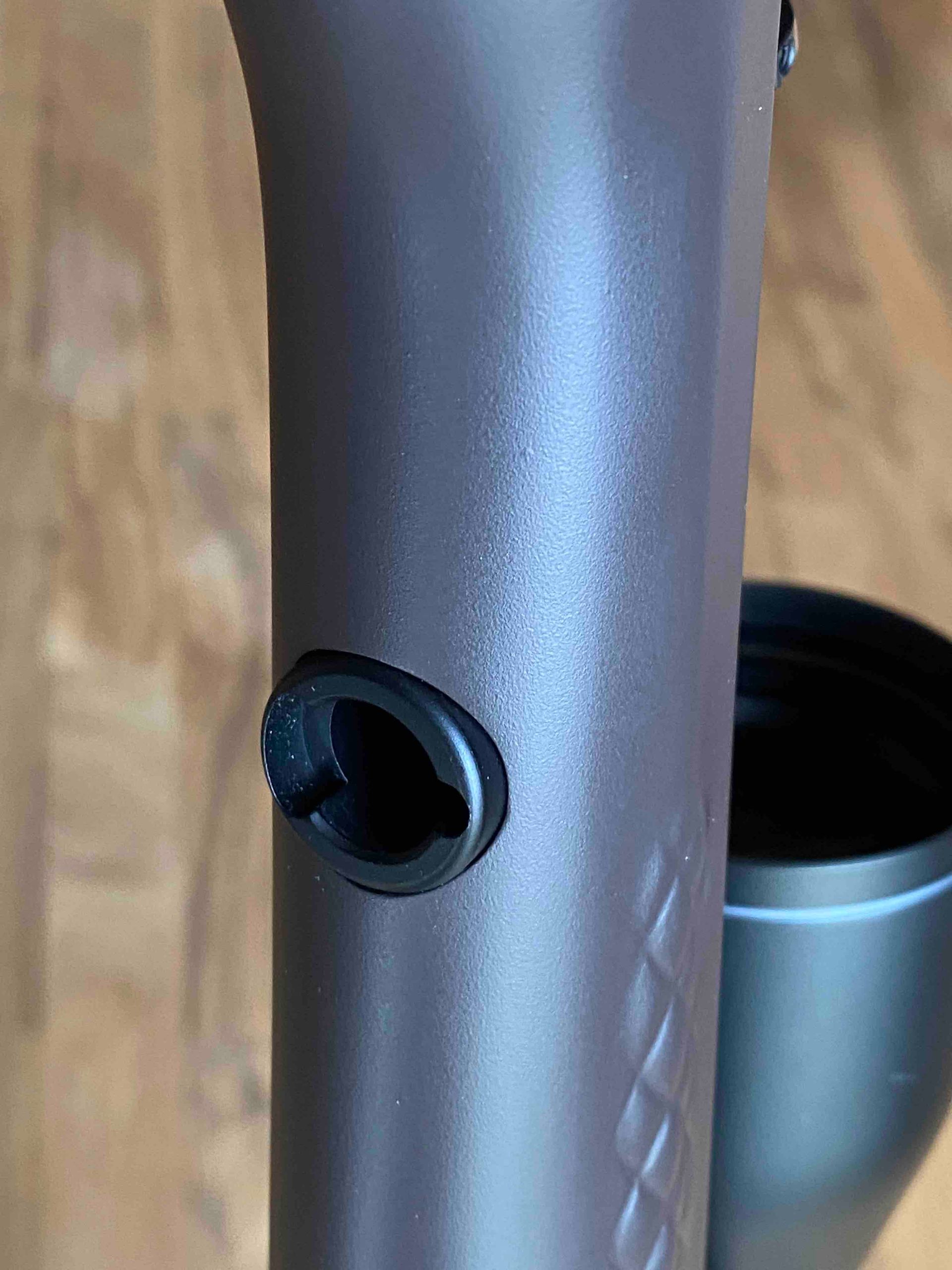

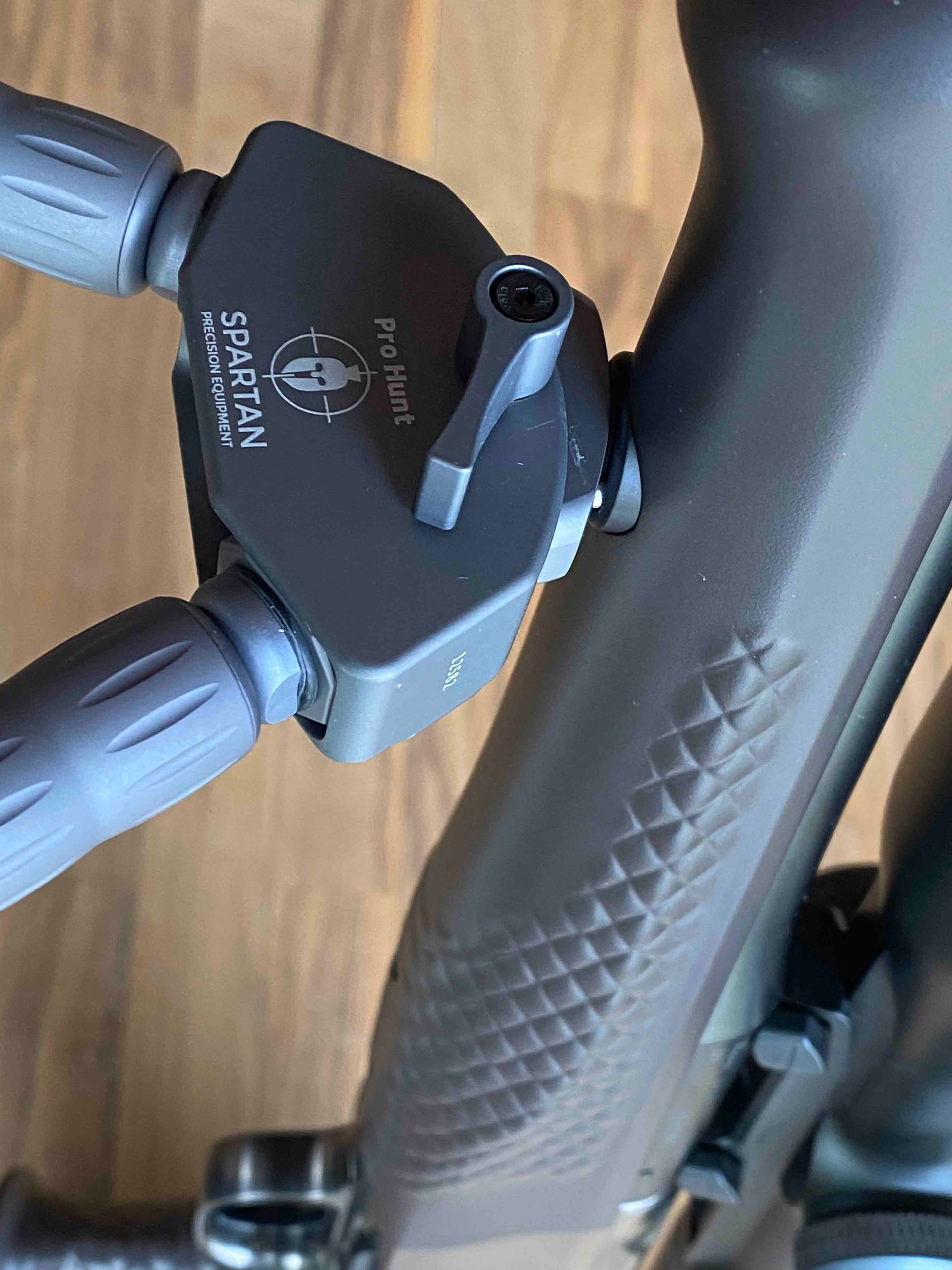

• Another option is an integrated socket for a bipod insert

fromBlaser or Spartan.

Additional option bipod socket 85€

16. renovation one-piece Shaft system R93 & R8 Mono:

• The renovation the customer can not do it yourself !
• It is necessary that you send us the system housing (possibly with stock) of your weapon, as we have to fit the system housing into the stock in-house in order to compensate for tolerance variations on the part of the system housing manufacturer and thus achieve perfect shooting performance!
• We will coordinate the transfer of the system housing together before you order a mono shaft from us!
• Please contact us!

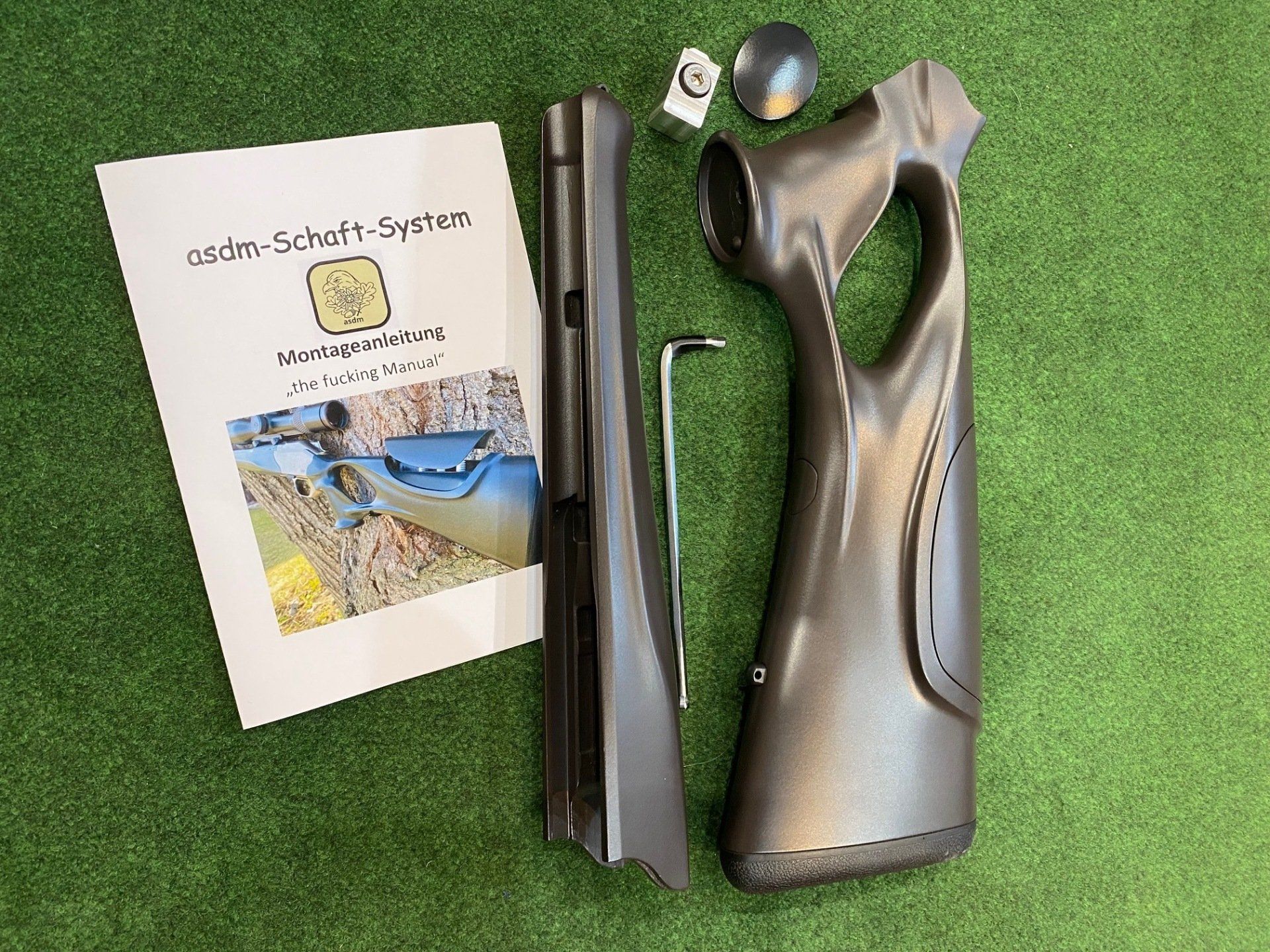

17th Scope of delivery:

• You will receive from us:
• forearm, with strap anchor from Halder Push & Go
• buttstock, with strap anchor from Halder Push & Go

  or

  • Complete one-piece shaft, for the Mono system, with strap anchor from Halder Push & Go
  • butt plate
  • pistol grip cap
  • system adapter, is only required for the R93 and R8 Standard models.
  • socket wrench, for assembly
  • assembly instructions (with disassembly instructions for the old shaft set)

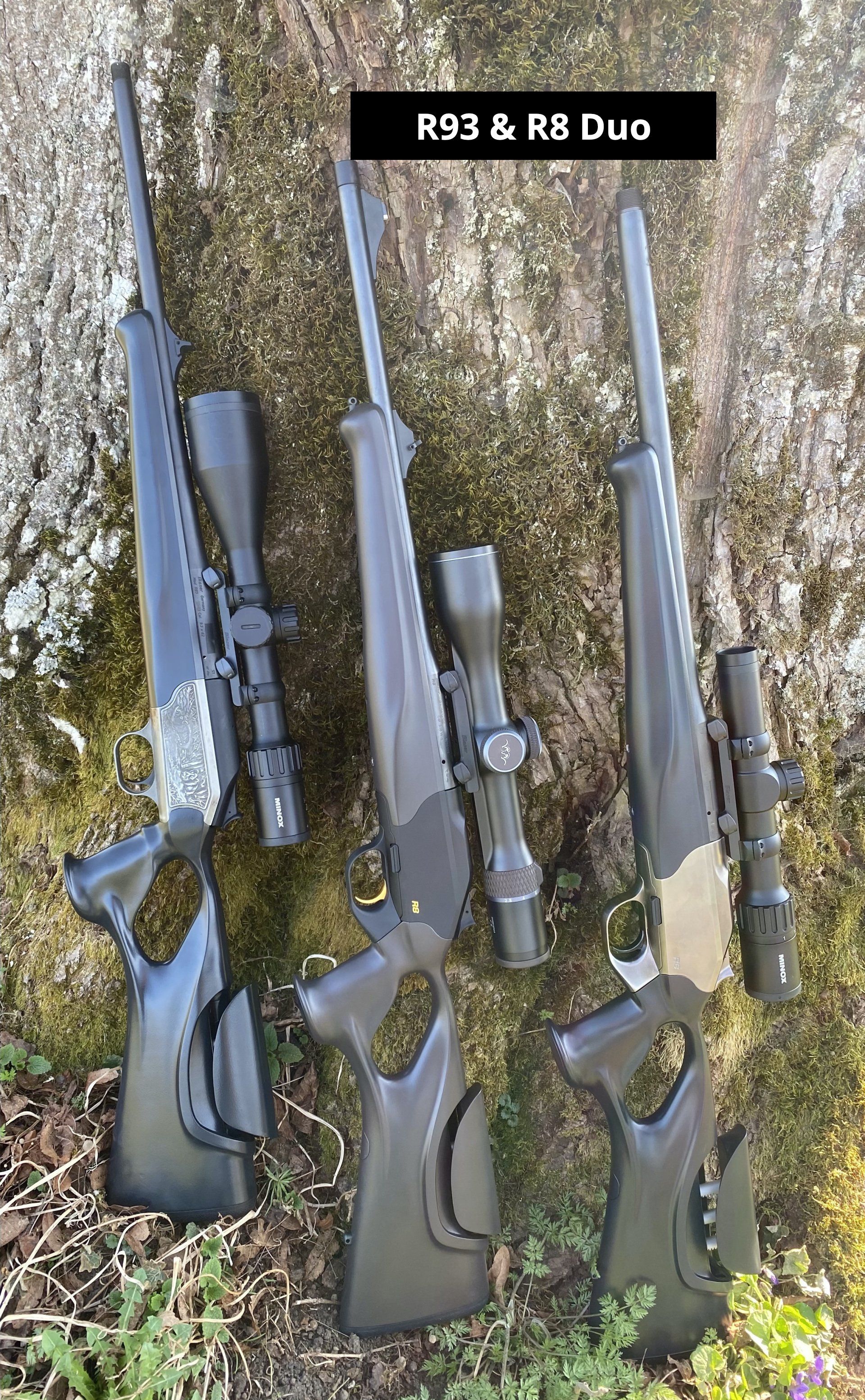

scope of delivery (e.g. R8 Duo)

18. Service:

• If it accidentally damage come, e.g. scratches Due to collision with hard objects such as stones, rocks or metal objects such as screws or nails, e.g. when sitting in a hide, in contrast to a wooden shaft or a commercially available plastic shaft, a complete repair can be carried out without much effort and without any permanent damage to the appearance or shape!
• If you need anything, please contact us, we will be happy to help you!
